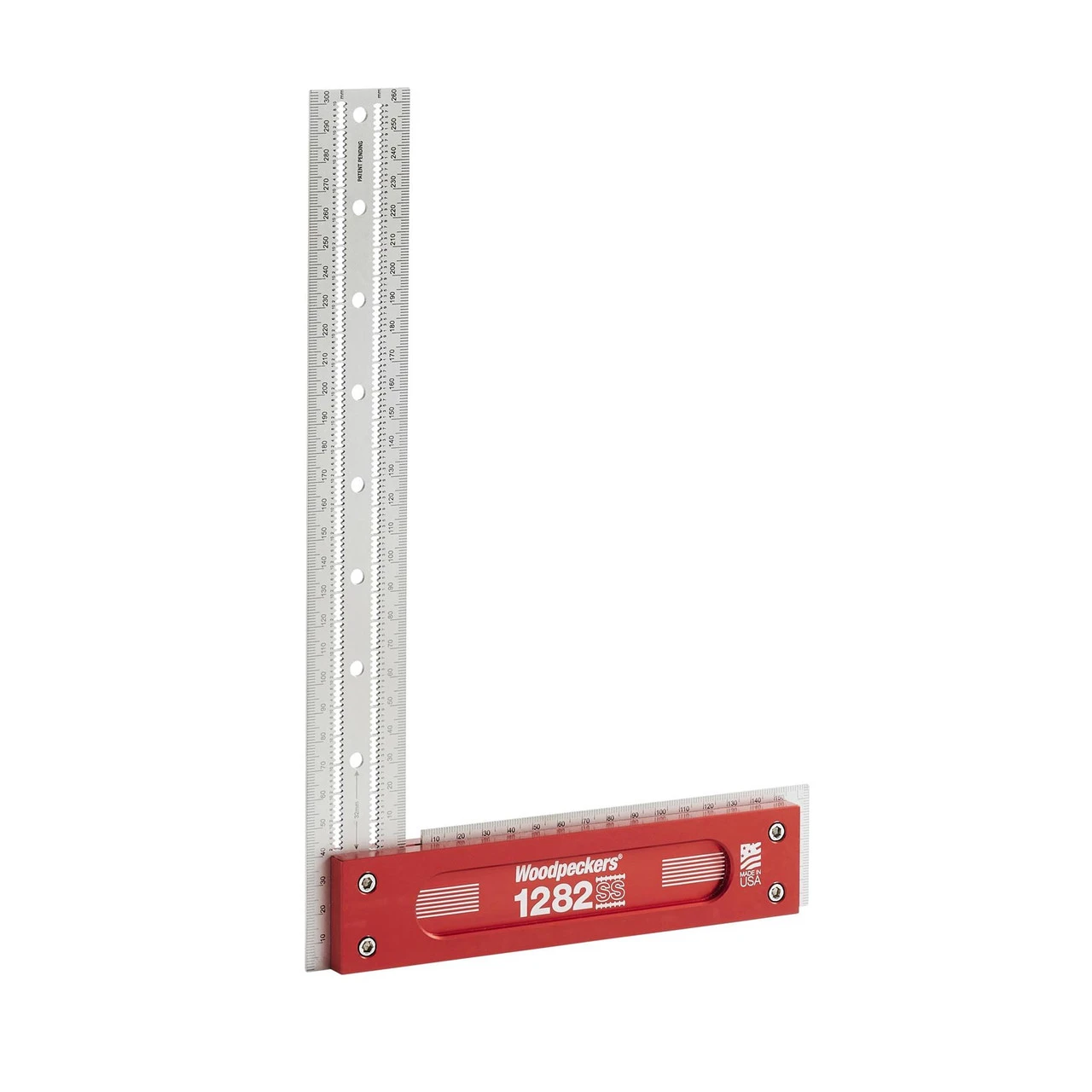

Woodpeckers Stainless Steel Square 300mm – Model 1282

At the heart of the Woodpeckers 300mm Stainless Steel Square is the design of its one-piece core. This square isn’t determined by pins, rivets, screws or spot-welds like it is in many other squares on the market. It’s determined by Woodpeckers state-of-the-art CNC milling centres. The core is machined square by a computer and verified square by a computer-controlled optical inspection system, which is capable of measuring angularity to 5 decimal places. The 1.6mm thick blade gets heat treated and tempered ensuring strength and stability. Finally, they’re bead blasted to create a non-glare finish that contrasts nicely with the laser-engraved scales.

Like Woodpeckers Aluminium squares, the cheeks added to the central core are narrower, forming a shoulder that keeps your square registered to your stock even when you let go. You’ll love using Woodpeckers new stainless-steel squares for lay out work. First, the scales are laser-engraved to a tolerance of ±.004″. The thin blade puts the scale right next to your work, reducing parallax error. Woodpecker laser cut precisely-spaced scribing notches along the blade. Just drop a pencil into the notch of your choice and slide the square along the edge of your stock. With twin points for each notch, it doesn’t matter whether you push or pull, you’ll get a line perfectly parallel to the edge.

To aid machinery set up, Woodpecker laser engraved the end of the beam, as well as the edges. The squares stand upright without a hand, giving you both hands to dial in the height of your router bit, saw blade or dado stack. Also like Woodpeckers Aluminium squares, they stand behind these squares for the life of the tool. They’re guaranteed to be within ±.0085°. To put that in perspective, on the 1282SS, the maximum error you could find at the far end of the square would be about half the thickness of a human hair. If you ever find it outside that tolerance, they will fix it or replace it.
