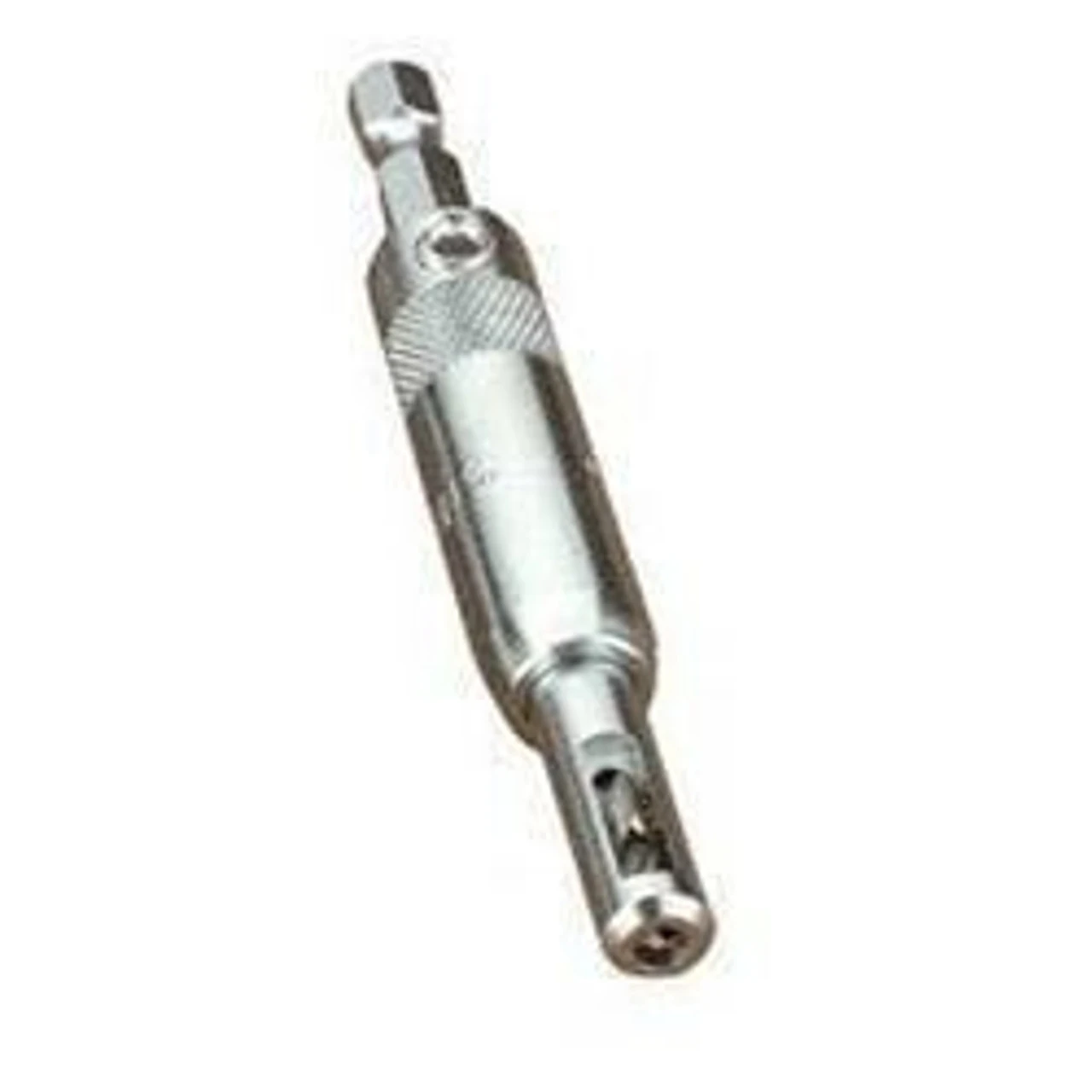

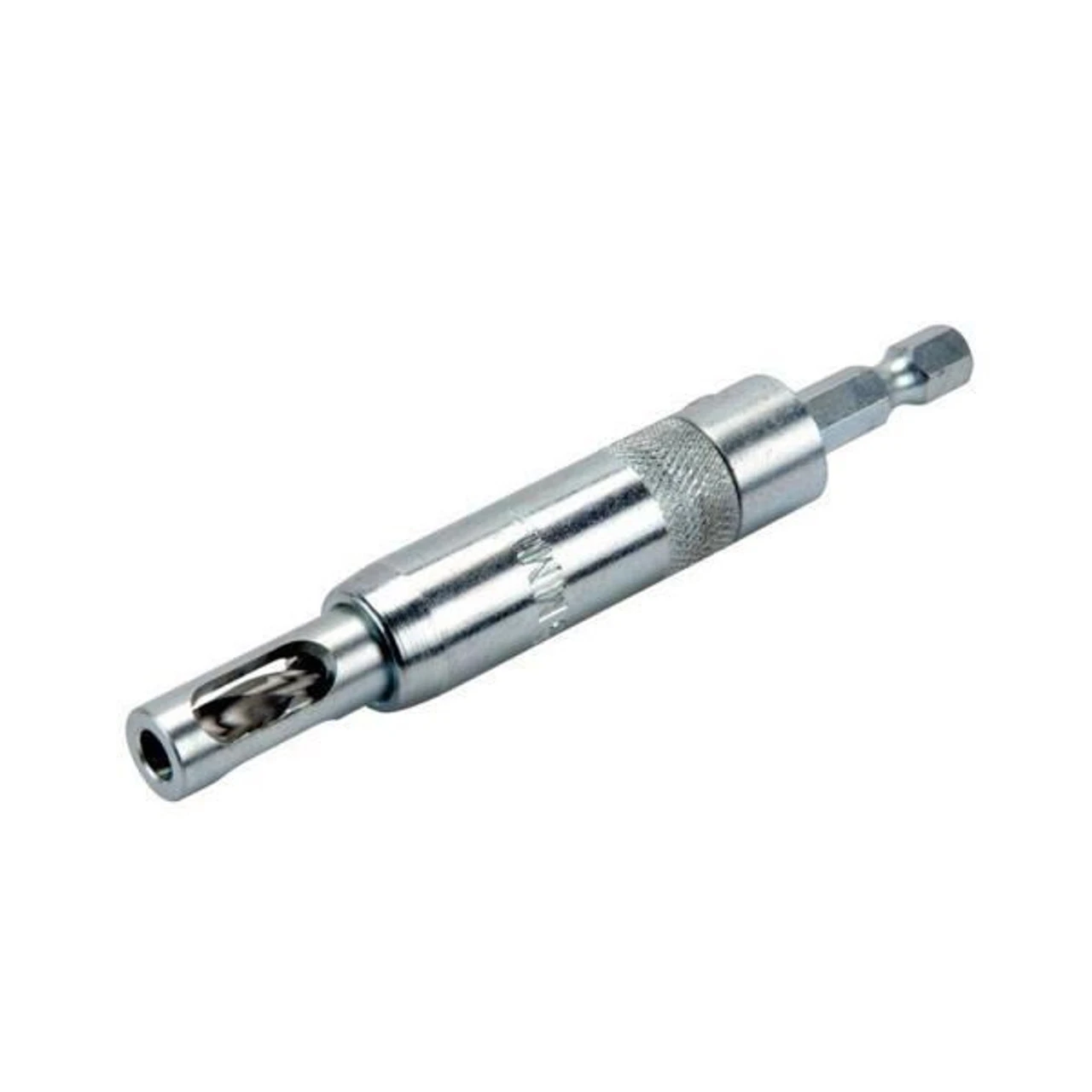

Woodpeckers Snappy Shelf Pin Drill Bit – 5mm

Woodpeckers Snappy Shelf Pin Drill Bit is self centring and perfect for drilling 5mm holes which work very nicely with the Woodpecker Combo Shelf Pin Template.

• Drive Shank: 1/4″ Hex Power Bit Shank
• Drill Size: 5mm Ø HSS Twist Drill
• Recommended Screw Size: Use with 5mm Shelf Pins
• Replacement Twist Drill: 49005

Peter Sefton Tips

I feel this drill bit would be best used prior to any sanding as a quick way of producing accurately spaced drill holes when used with the drill bit guide.

For customers that require a cleaner cut with minimal tear-out, I suggest using this bit at a high speed or using a router and guide bush fitted with a down-cut spiral cutter (see video) or drilling through a clamped, sacrificial MDF cover board; any of these techniques should lead to a significantly cleaner finish.
