Veritas Mk II Honing Guide Standard Set With Camber Roller Assembly

Veritas Mk II Honing Guide Standard Set with Camber Roller Assembly comprises a Mk II Honing Guide and a Camber Roller Assembly used to hone a slight curve, or camber, into the edge of the blade.

Veritas Mk II Honing Guide features a blade registration system which means squaring and setting the blade is one easy step.

The Mk II Honing Guide has three bevel angle range configurations: a high angle (25 degree to 54 degree in seven increments), standard (15 degree to 40 degree in six increments), and a third for back bevels.

The registration jig slides onto the guide body, centering and squaring the blade using an integral fence. The clamping mechanism registers on the face of the blade and is designed to accept flat and tapered blades, as well as blades with irregular geometry. The Mk II Honing features a three-position eccentric roller allowing a micro-bevel to be honed quickly and accurately after only a simple turn of a knob.

The 50mm wide roller is stable for even the narrowest of blades. The Honing Guide can easily accommodate chisels or blades from 6 to 72mm wide and up to 13mm thick including spokeshave blades.

Veritas Camber Roller Assembly is an attachment specifically designed for use with the Veritas Mk II Honing Guide. Use it to hone a slight curve, or camber, into the edge of the blade when planing on large, flat surfaces.

The Veritas Camber Roller Assembly has a barrel-shaped roller that allows limited rocking, whilst still maintaining an accurate and consistent bevel angle. Simply replace the standard roller assembly with the camber assembly and sharpen.

The blade is still set using the registration jig, and the camber roller includes the standard eccentric system allowing micro-bevels to be honed.

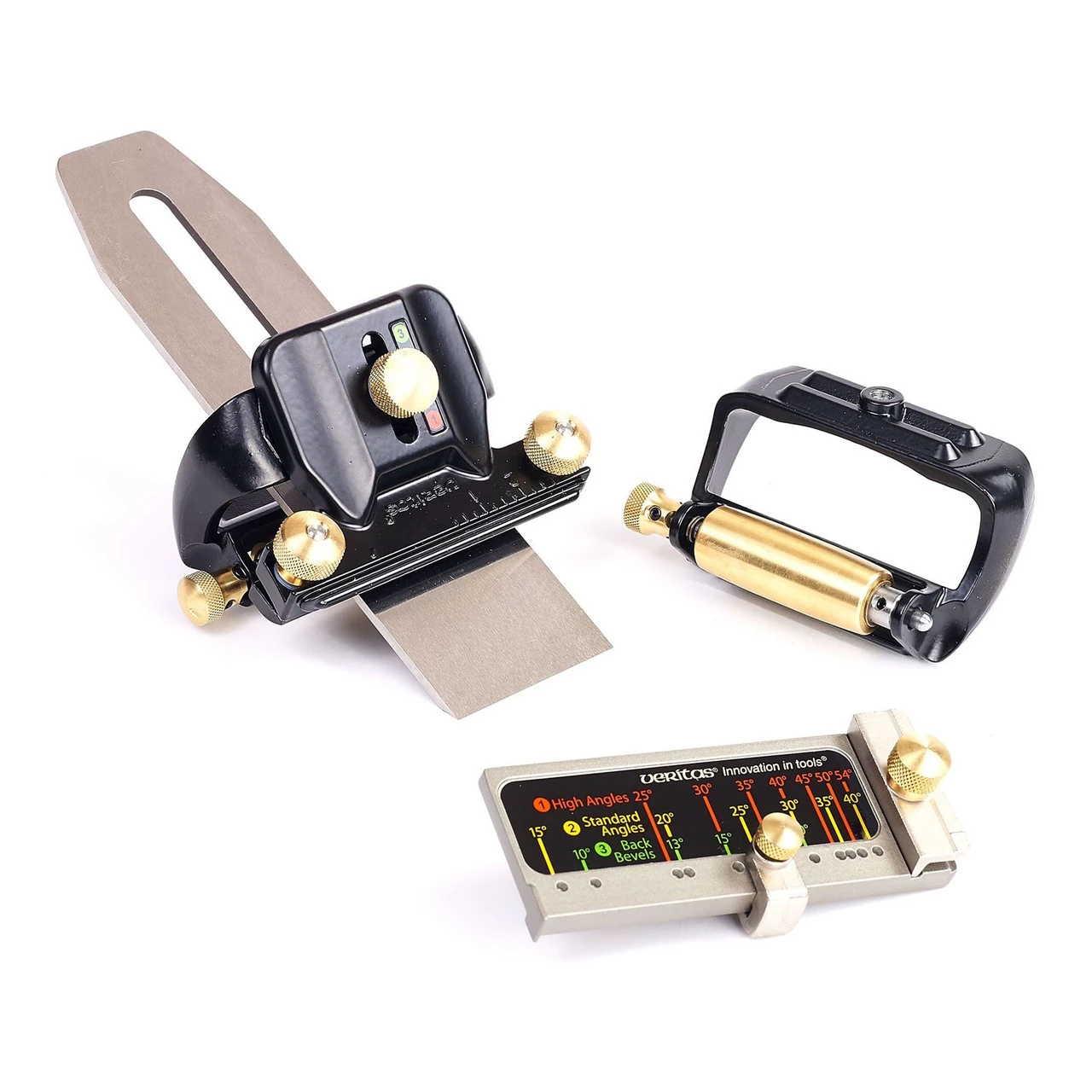

Includes

• 1 x standard clamping head
• 1 x straight roller base
• 1 x angle registration jig
• 1 x camber roller assembly
• 1 x Instruction leaflet

Veritas Honing Guide Instructions
