Milescraft JointMaster (Metric)

A compact and versatile doweling jig that allows woodworkers to create any dowel joint quickly and accurately. It has two retractable edge stops to quickly line up boards. The self-clamping design allows for easy setup. The clamp can be moved from the main body to the clamping wall to create different joints. If required, the clamp body can be removed entirely based on your project needs and your own clamping solution can be used.

The convenient centring marks make sure your holes are where you want them. If you’re using common sizes of 12.5mm, 16mm, 19mm, or 38mm thick boards, the three included spacer blocks will automatically align the drill blocks and help you select the appropriate dowel size.

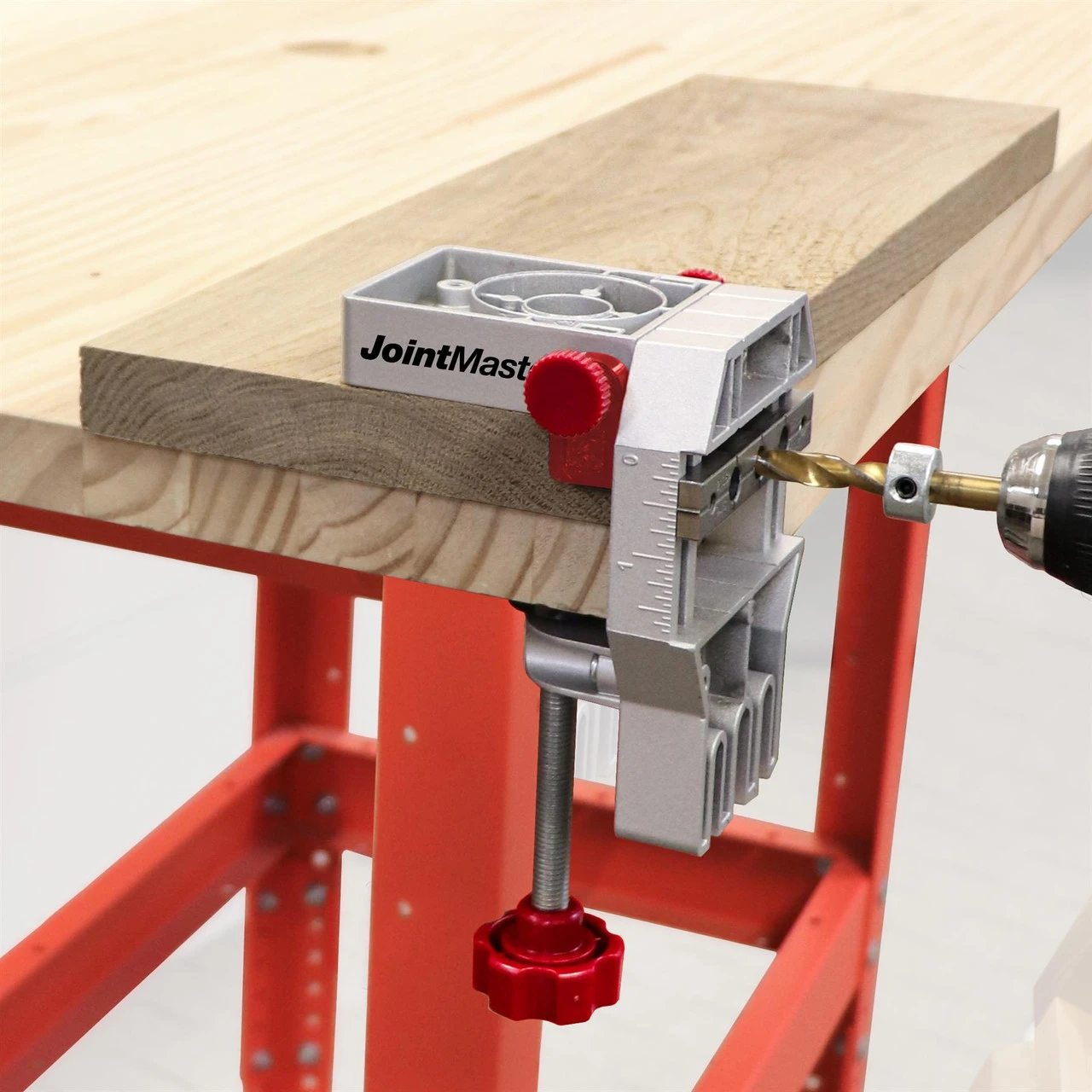

To help eliminate alignment issues, the JointMaster™ has built-in edge stops. Simply lower, tighten, and rest your boards against them to ensure both boards have their dowel holes in the same position for a solid joint. When creating surface joints, the three dowel alignment slots help you transfer the edge dowel position to the face of your board with ease.

Features

• Sturdy all-metal body is configurable for edge, corner, and surface joints
• Two retractable edge stops align your first and second board for flawless joints
• Three hardened steel drill guides for long-lasting life, adjustable to accept and align centred dowel holes on boards from 1/2” up to 3” (12.5mm up to 75mm)
• Engraved, embossed scales and centring lines assure alignment is spot on
• Three dowel centring slots make for quick and accurate transfer of dowel positions from your first board to the second when creating surface joints

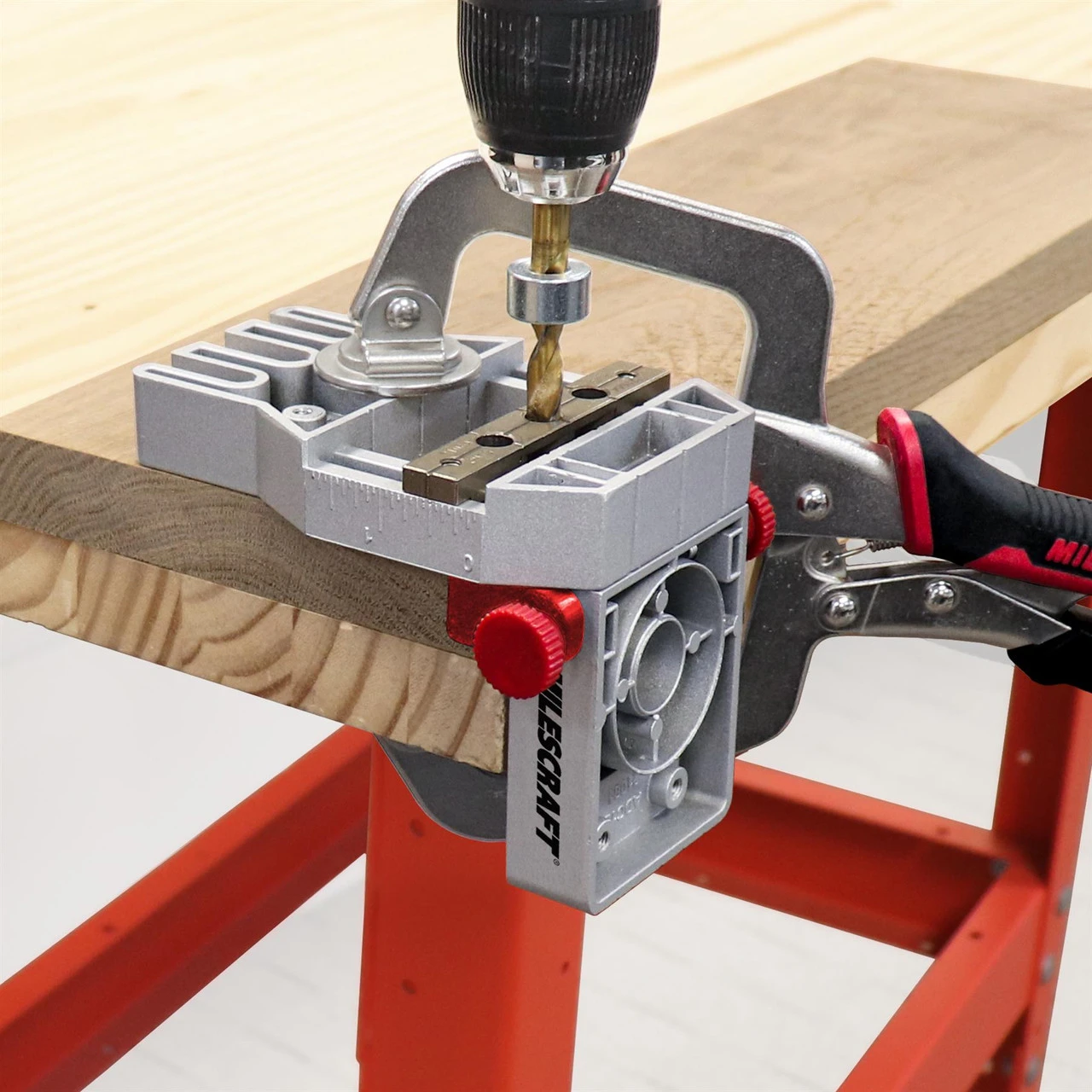

• Dual-position clamp can be mounted to either wall to complete multiple joint types
• Included spacers automatically align drill guides with board thicknesses ranging from 1/2” to 1-1/2” (12mm to 38mm) and include a built-in centre finder and pencil

Includes

• 1 x JointMaster™
• 1 x Centring Spacers: 6, 8 and 10mm
• 1 x Bushing Blocks: 6, 8 and 10mm

Please Note: Images are for illustrative purposes only – this product metric version
