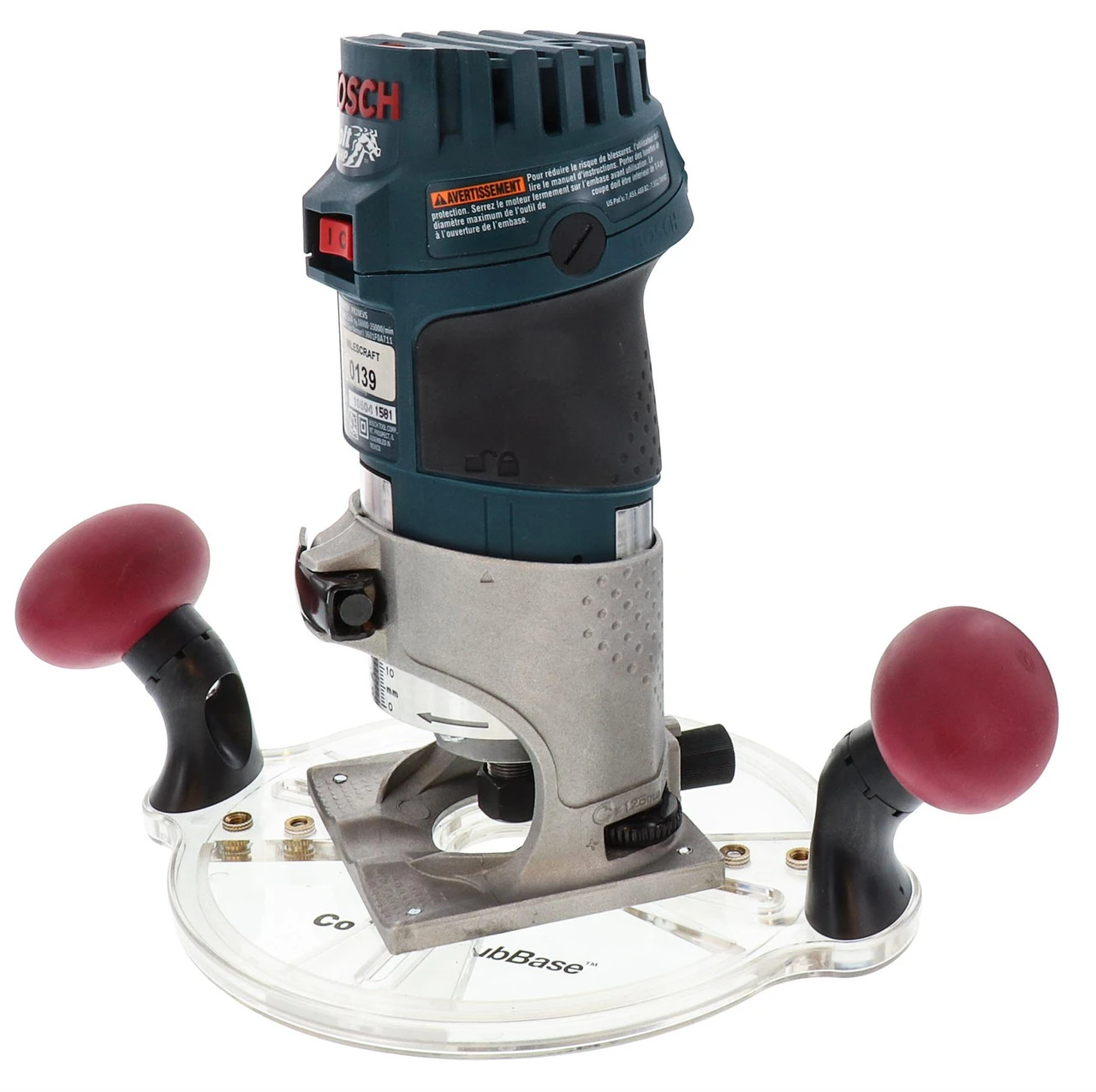

Milescraft CompactSubBase

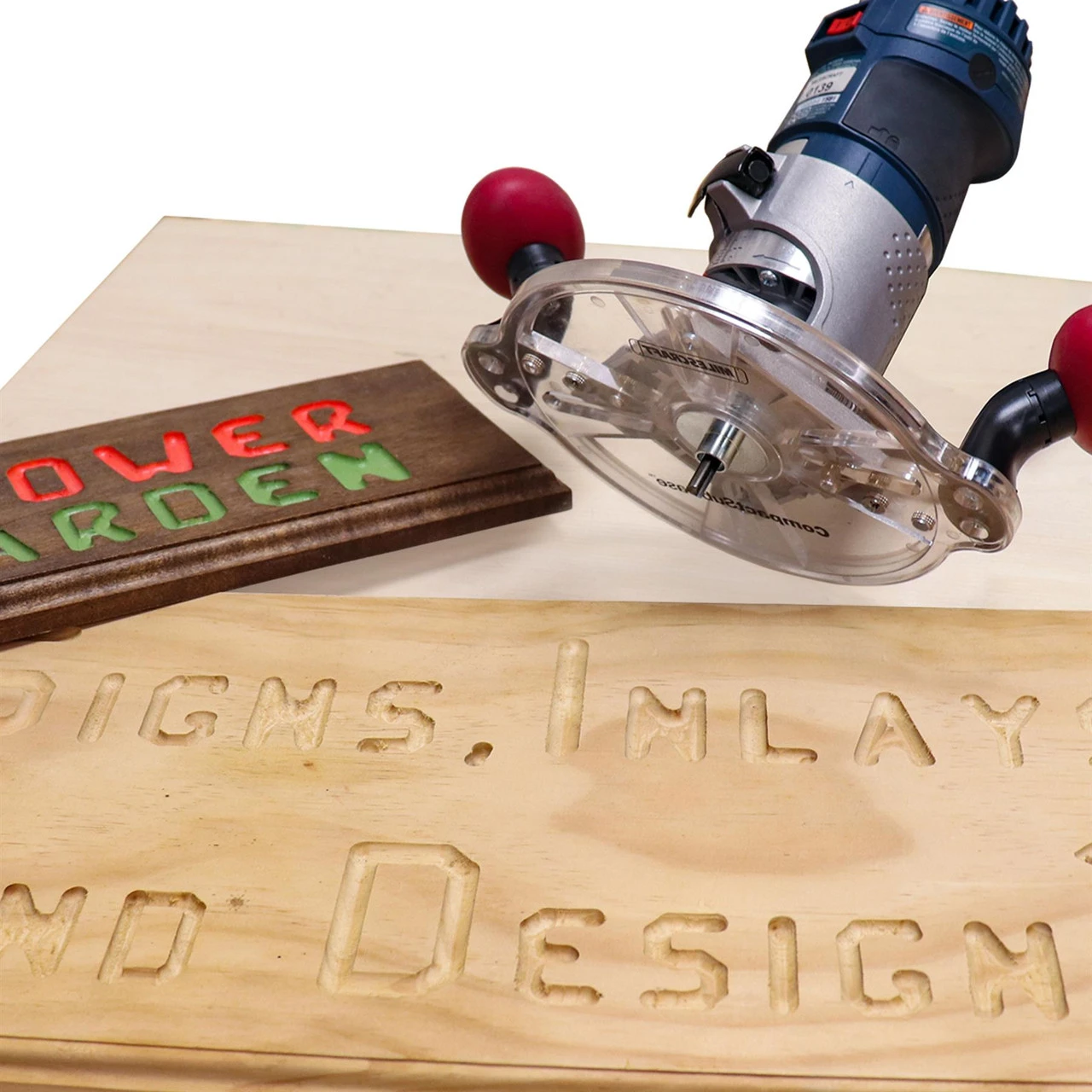

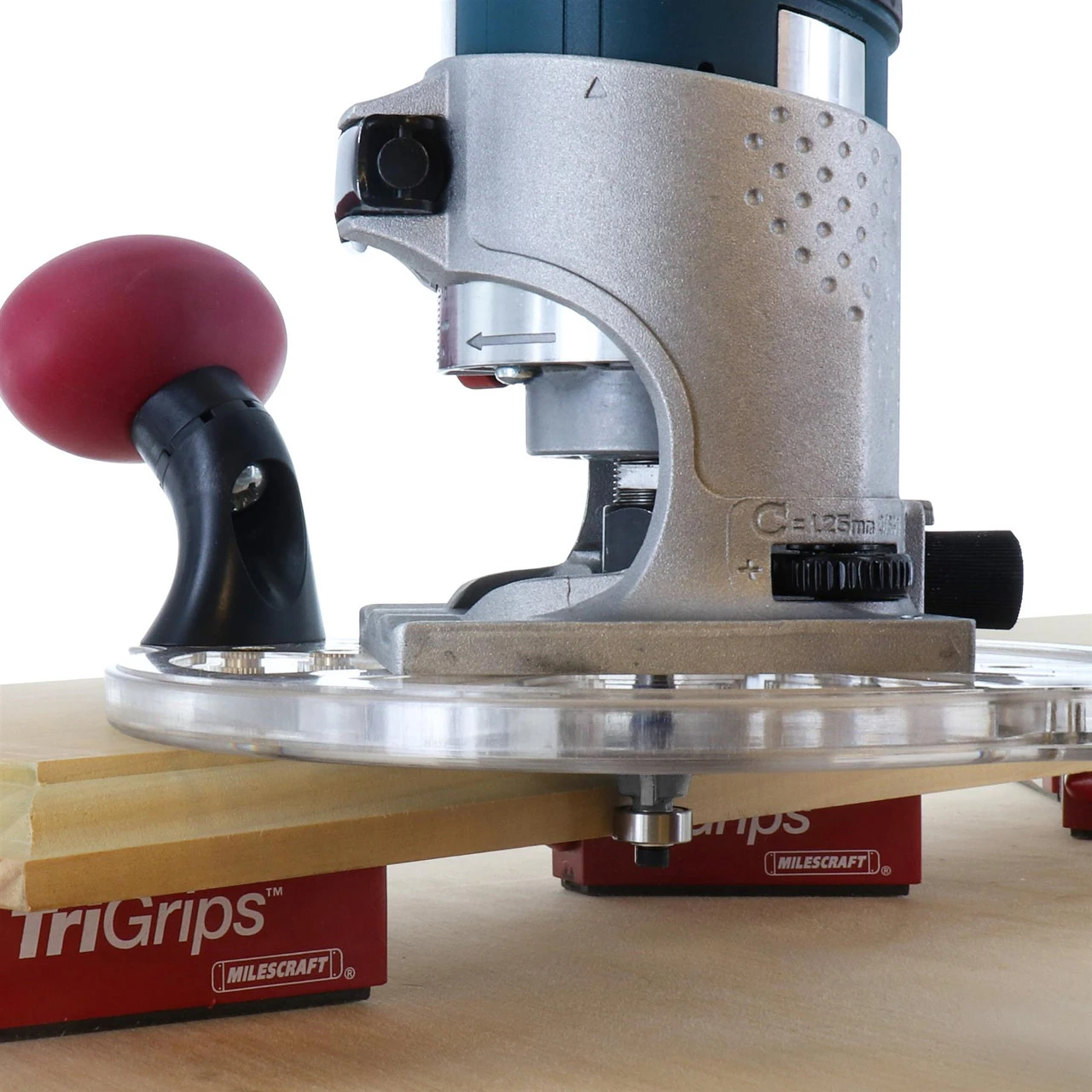

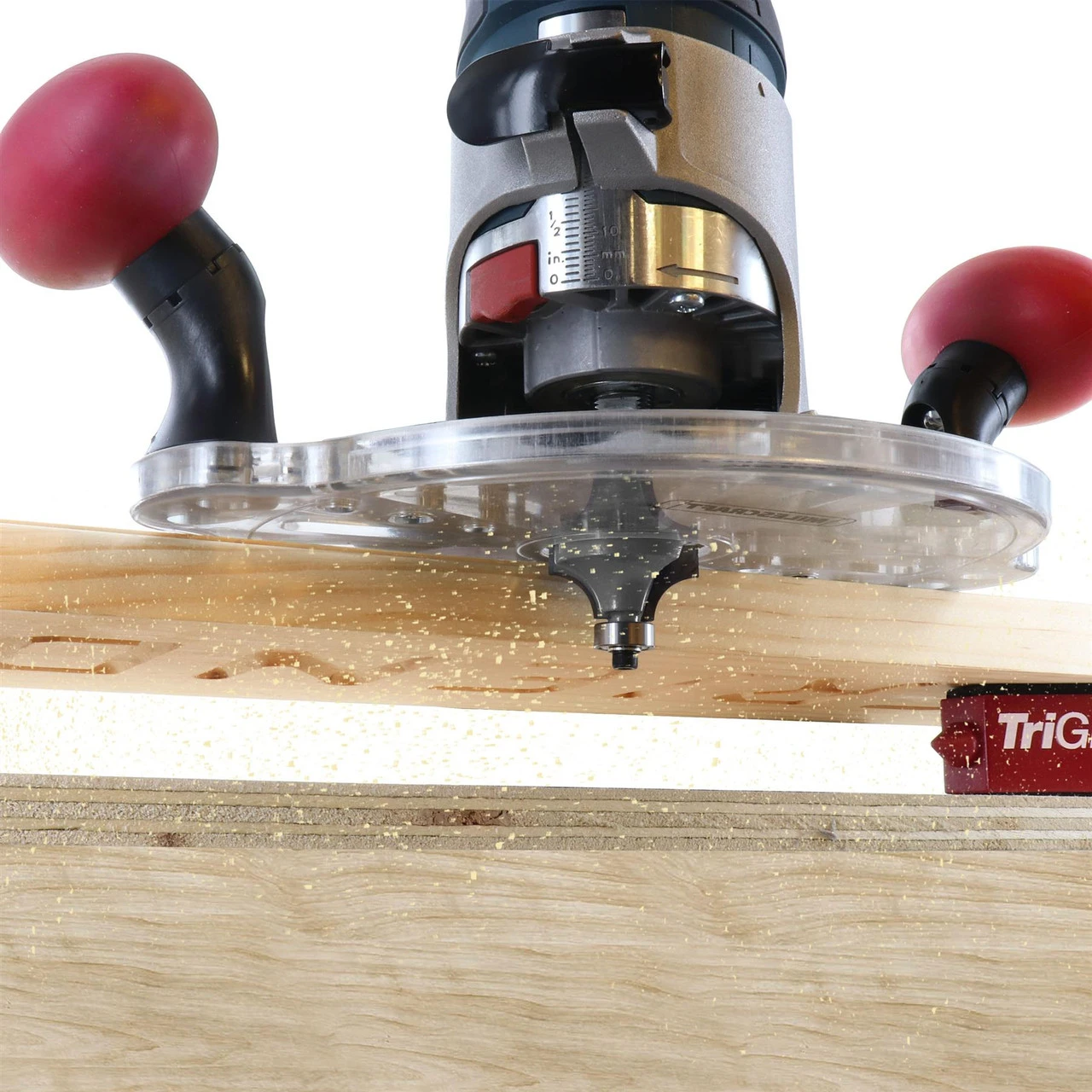

The CompactSubBase™ is ideal for edge routing, template routing, mortise routing and more. With a 6-3/4″ (170mm) diameter and integral handles, it provides improved stability and control over the small base plates provided on compact routers. This attachment is compatible with all compact and trim routers, making it the perfect accessory for your routing applications. Compatible with our AUKTools Metric Threaded Guide Bush Set.

Features

• Compatible with all trim and compact routers
• The base is compatible with standard 1-3/16″ (30.2mm) diameter bushings
• Universal adjustable inserts are used to mount your router to the base
• 360° rotational handles reduce fatigue while routing

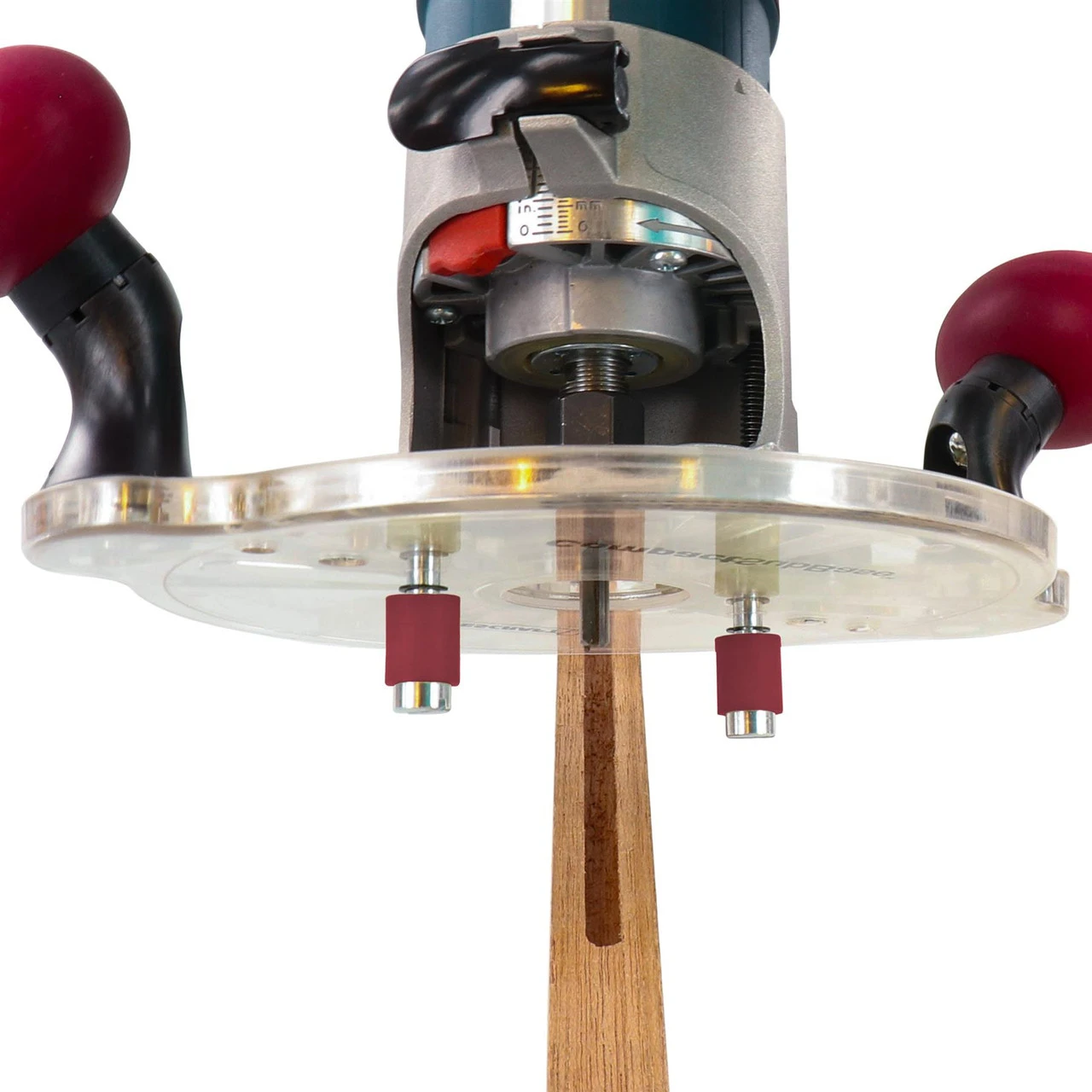

• Includes two mortise pin mounting locations and two mortise pins for cutting mortises into varying board thicknesses
• Built-in storage for mortise pins

Includes

• 1 x CompactSubBase™
• 2 x Handles
• 4 x Handle Mounting Screws
• 2 x Adjustable Mounting Inserts
• 1 x Base Cover
• 2 x Base Cover Screws
• 1 x Centring Pin
• 2 x Mortise Pins

Specifications

• Base Diameter: 6-3/4” (170mm)
• Centre Hole: 1-3/16” (30.2mm) diameter
• Centring Pin: Designed to fit 1/4”, 6mm and 8mm collets
