Micro Jig ZEROPLAY Guide Bar System (Double)

The ZEROPLAY Guide Bar is a unique hassle-free miter bar system that is designed to make calibration easier than ever

The ZEROPLAY uses parallel full-profile gliding surfaces, not set screws, to give you the smoothest operating miter bar on the market. Its smooth gliding movement makes calibration as simple as one-touch and lock in place. Simply push against the ends of the guide bar within a standard (3/4″ x 3/8″) miter slot or a Shopsmith miter slot and lock the width by securing the three button-head screws with a supplied hex key.

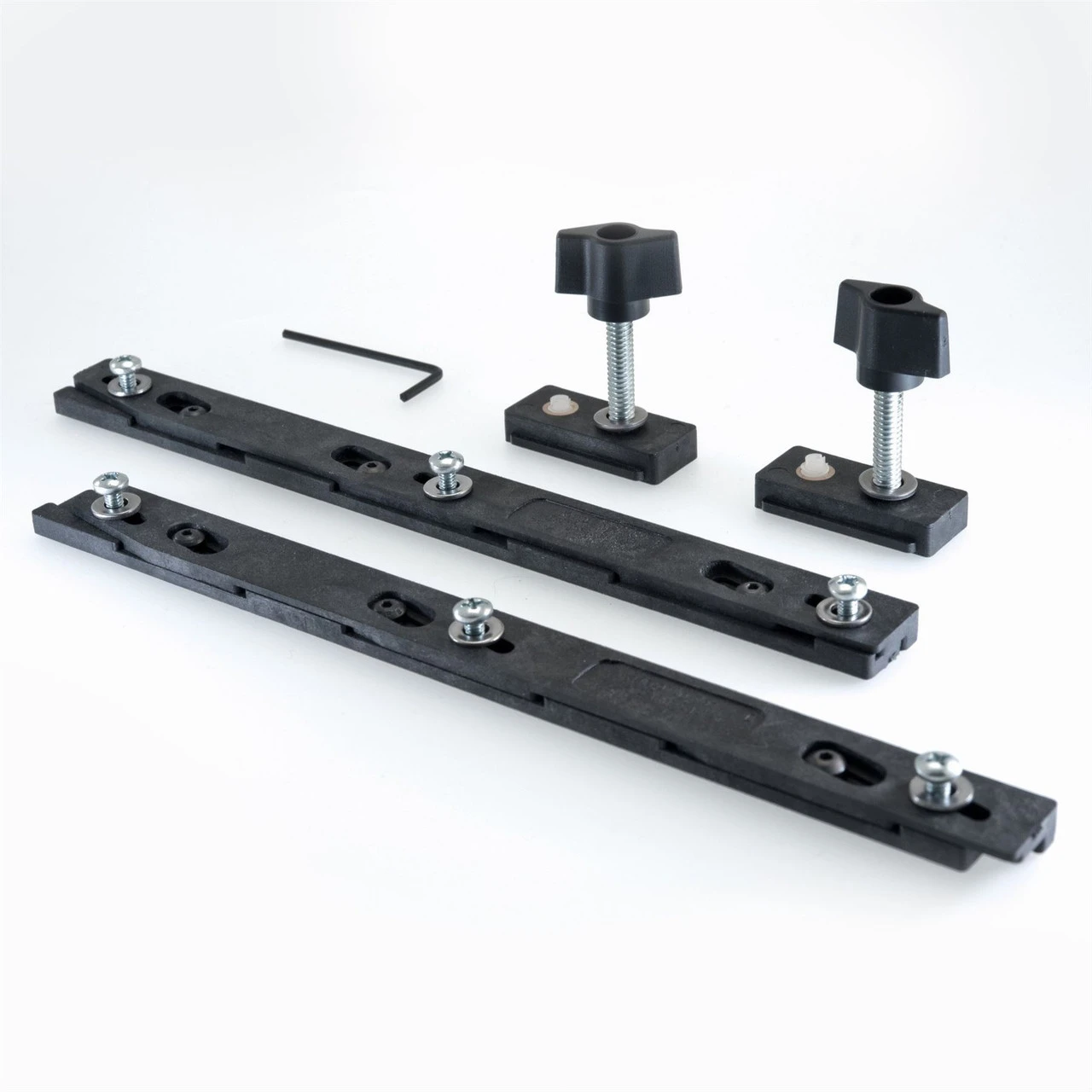

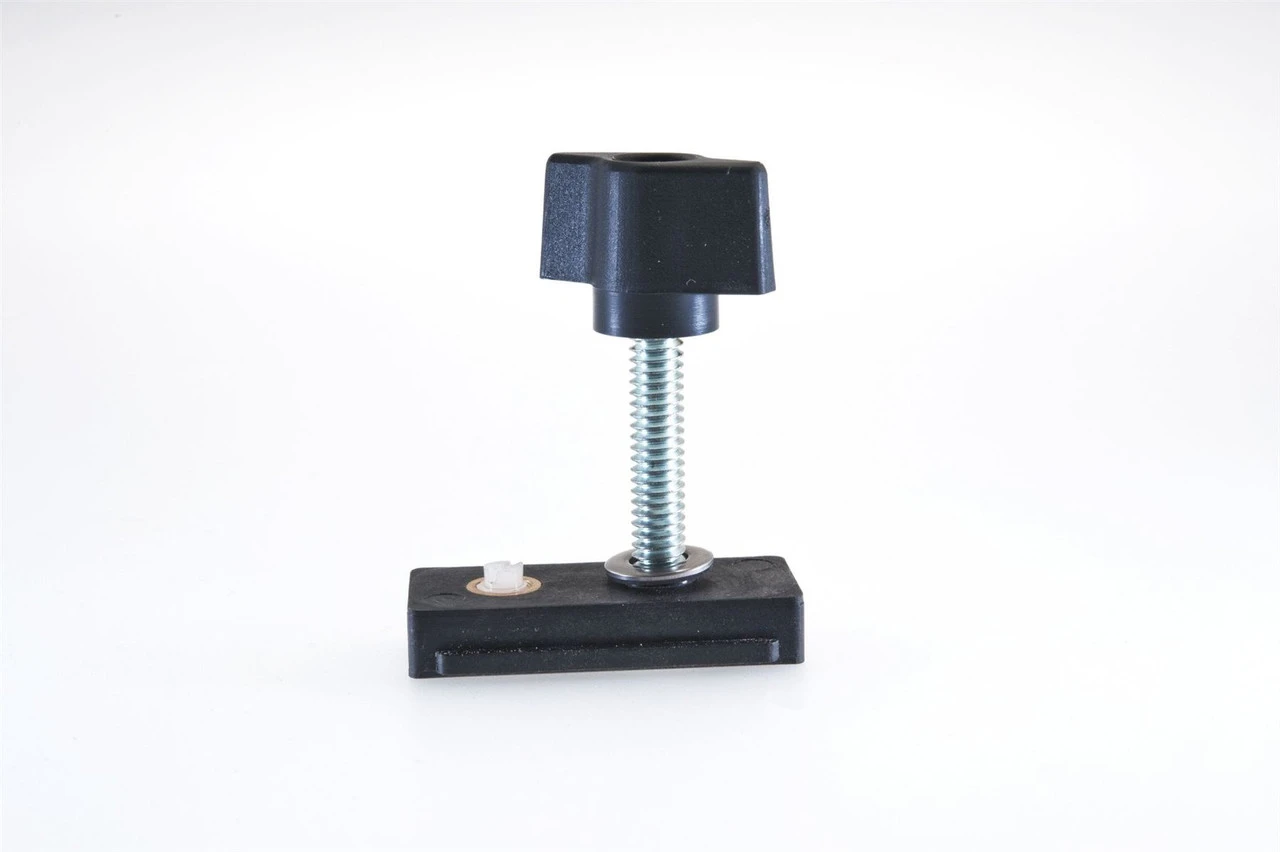

Each guide bar is composed of two interlocking plastic bars that adjust laterally to the exact width of your miter slot to stabilise your jigs. Guide bars are easily calibrated from the top of jigs and fixtures and are easy to retrofit. Includes two guide bars, two ZeroPlay™ stops and two bonus jig plans.

• Custom fits standard 3/4” x 3/8”, INCRA and General miter slots
• Slot Width Range: 0.730” – 0.790” (18.54mm—20mm)
• Slot Depth: minimum 5/16” (7.94mm)
