INCRA Mitre Channel 48″

INCRA Mitre Channel 48″ works with INCRA Miter Sliders and INCRA Miter Gauges or any standard 3/8″ by 3/4″ miter bar. T-Slot design for hold-down capability.

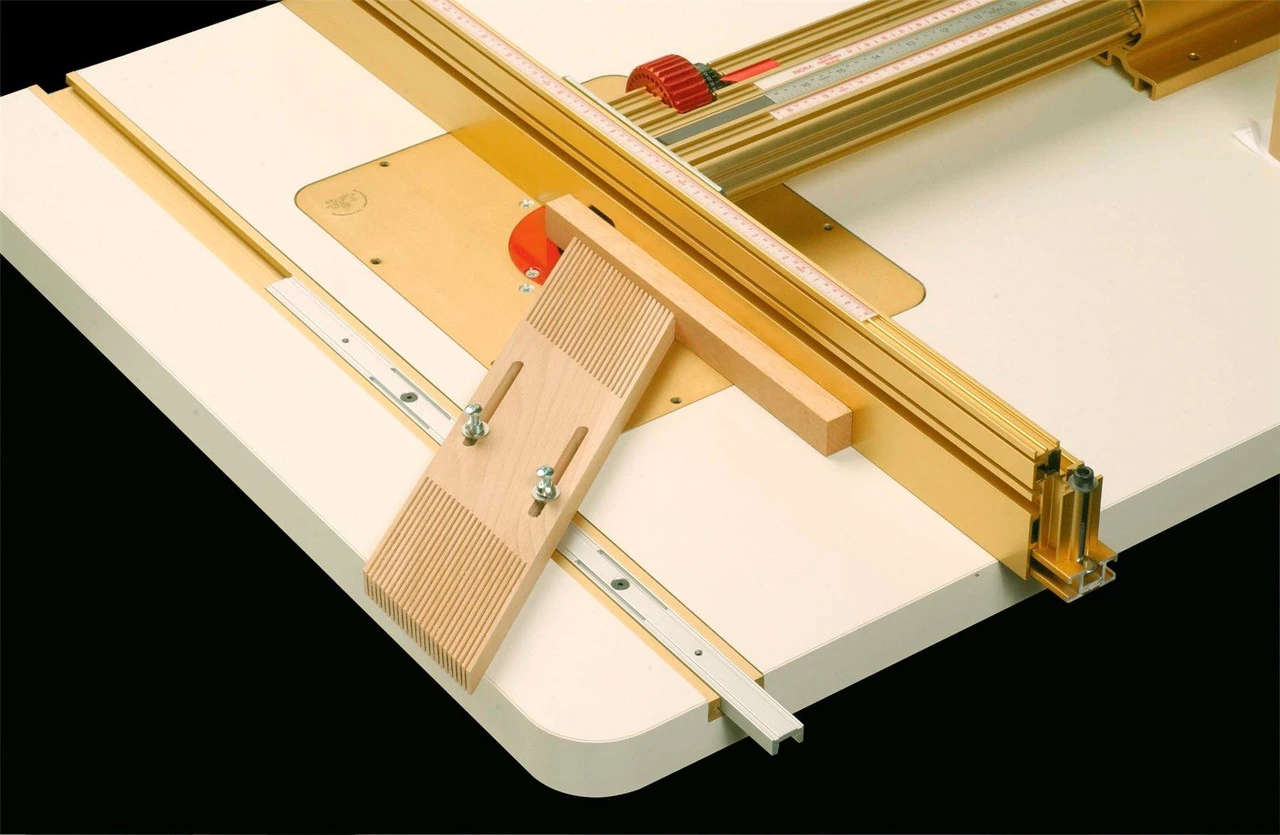

Mounts easily with pre-drilled holes and included fasteners. Use for positioning JessEm and Woodpecker Featherboards on router tables or table and band saws. Or fix your own jigs using Micro Jigs ZeroPlay Guide bar System or Woodpeckers Miter Slot Nuts.

Hard anodised aluminium for durability.
For most applications, the Flush Mount “Groove” method of mounting is preferable though you may find benefits in considering the Flush Mount “Build Up” or Surface Mount methods shown in the photos.

Groove Method
Cut a 1 1/8″ wide by 1/2″ deep groove in your application to fit the INCRA T-Slot Miter Channel. When installed, the Miter Channel should sit slightly below the surface of the table. Attach using the supplied fasteners.

Build-Up Method
Use 1/2″ thick material on either side of a surface-mounted INCRA T-Slot Miter Channel to create a flush mount.

Surface Mount Method
Use the supplied fasteners to attach the INCRA T-Slot Miter Channel directly to your application.

Dimensions

• Internal W3/4″ (19mm) x D3/8″ (10mm) x L48″ (1219mm)
• External W1-1/8″ (28.6mm) x D1/2″ (12.7mm) x L48″ (1219mm)
