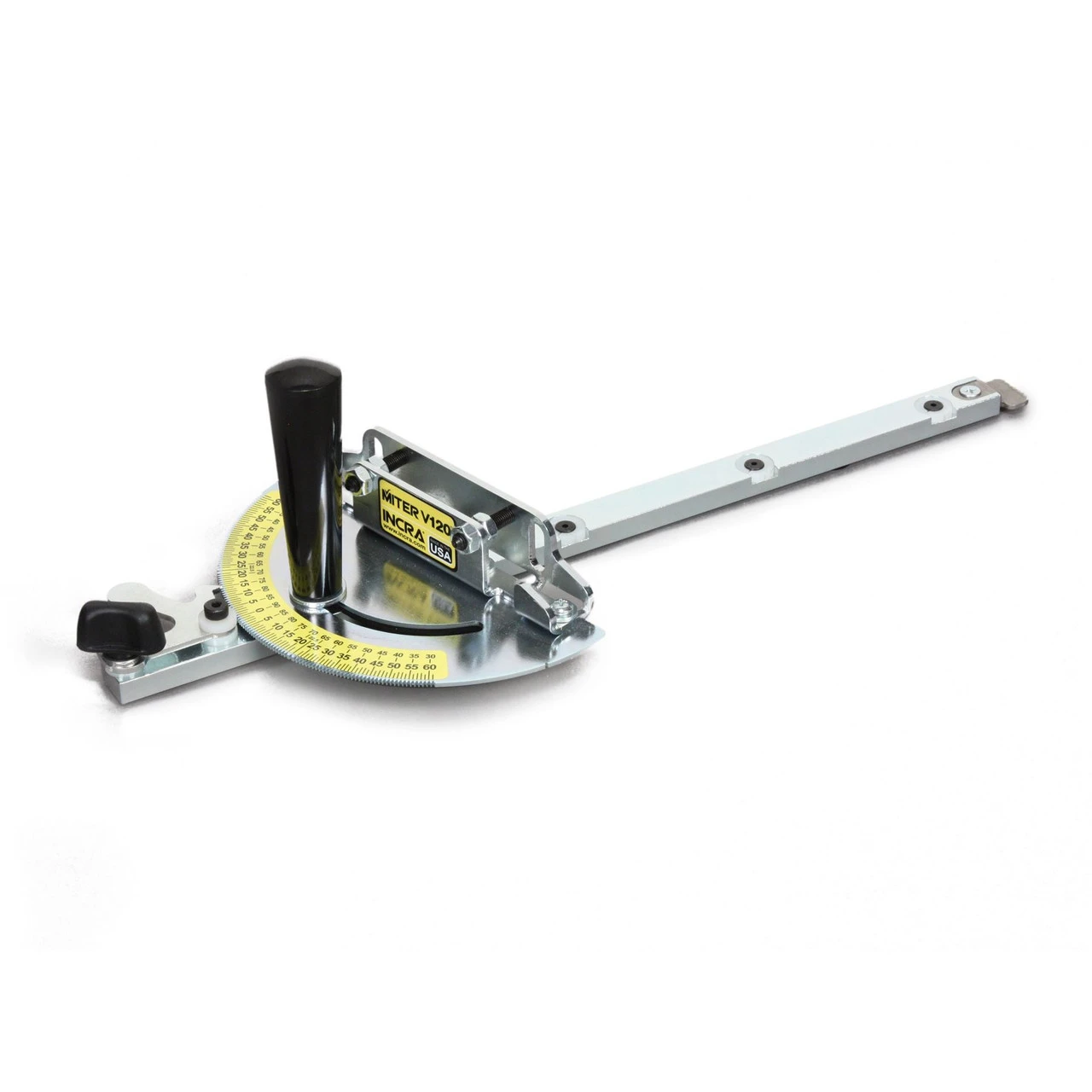

INCRA Miter Gauge V120

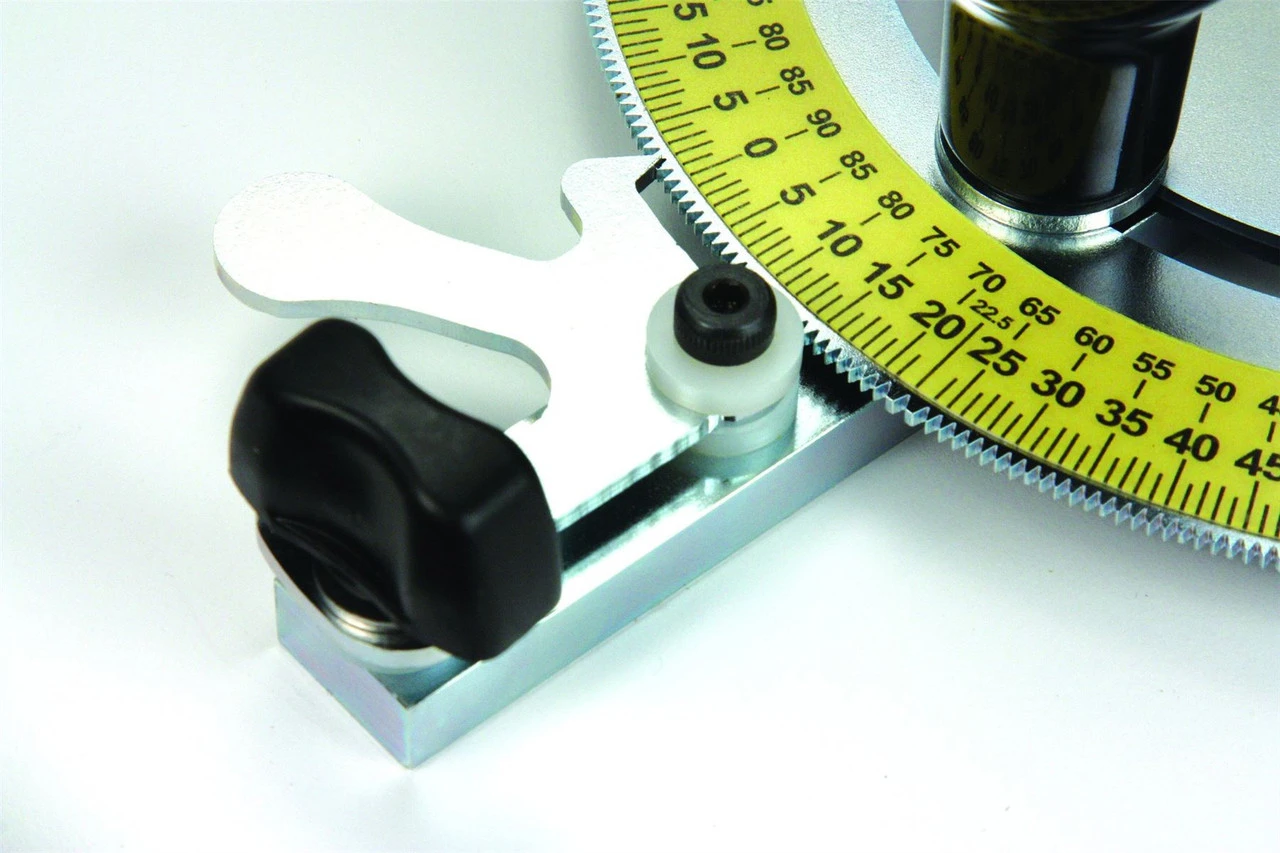

INCRA Miter Gauge V120 features an incredible 120 angle stops which are laser cut into the steel protractor, with a stop available for every whole degree and two special stops at 22.5 degrees for cutting eight-sided frames and mouldings.

Don’t let the small size fool you! The NEW Miter V120 puts high-resolution, repeatable accuracy within the budget of every woodworkers.

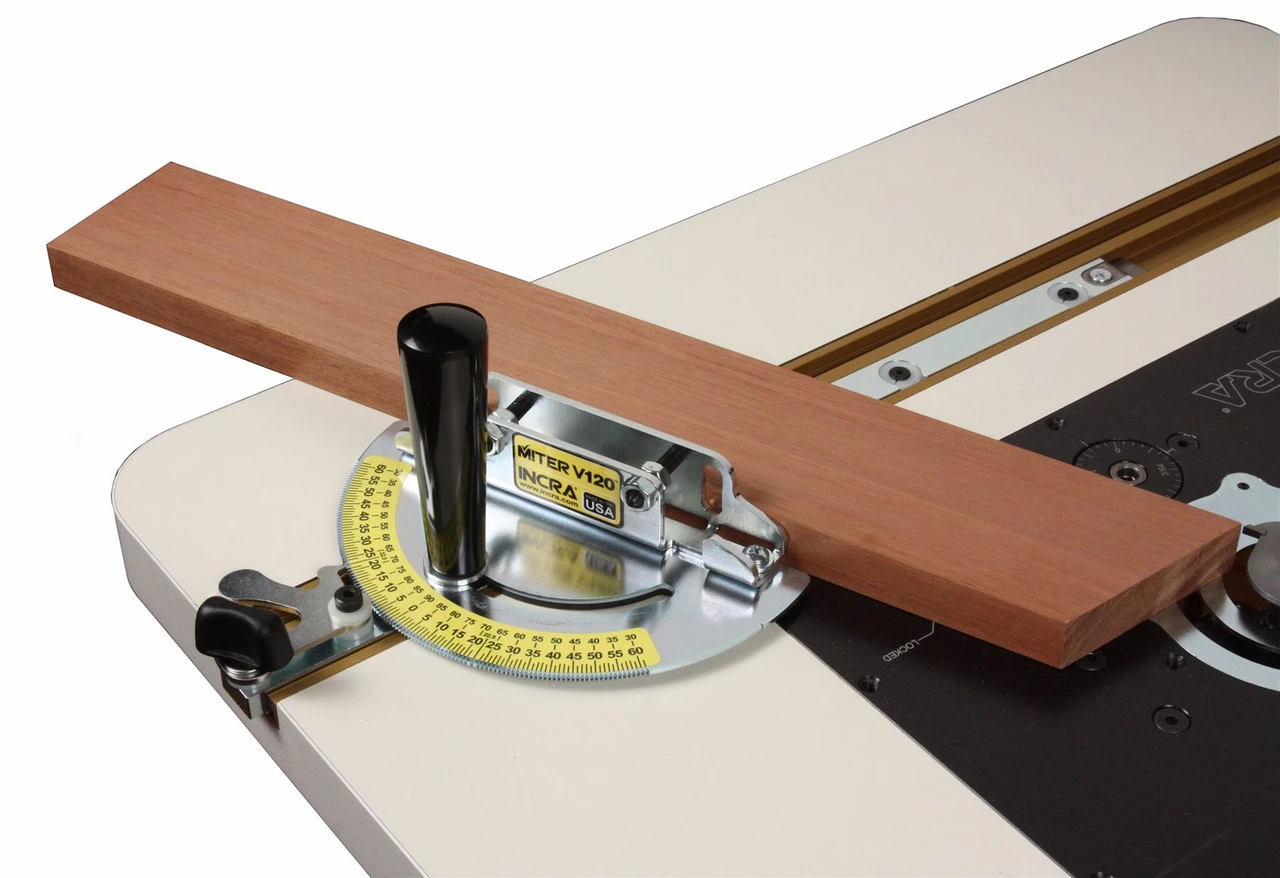

All of that precision is built into a sturdy, no-fuss package that’s compact enough to fit machines where other miter gauges can be a tight squeeze, such as band saws and disc sanders. All-steel construction makes it an excellent long-term investment, and it’s also upgradable as your needs change – the V120 can be equipped at any time with any IncraLOCK miter gauge fence and stop.

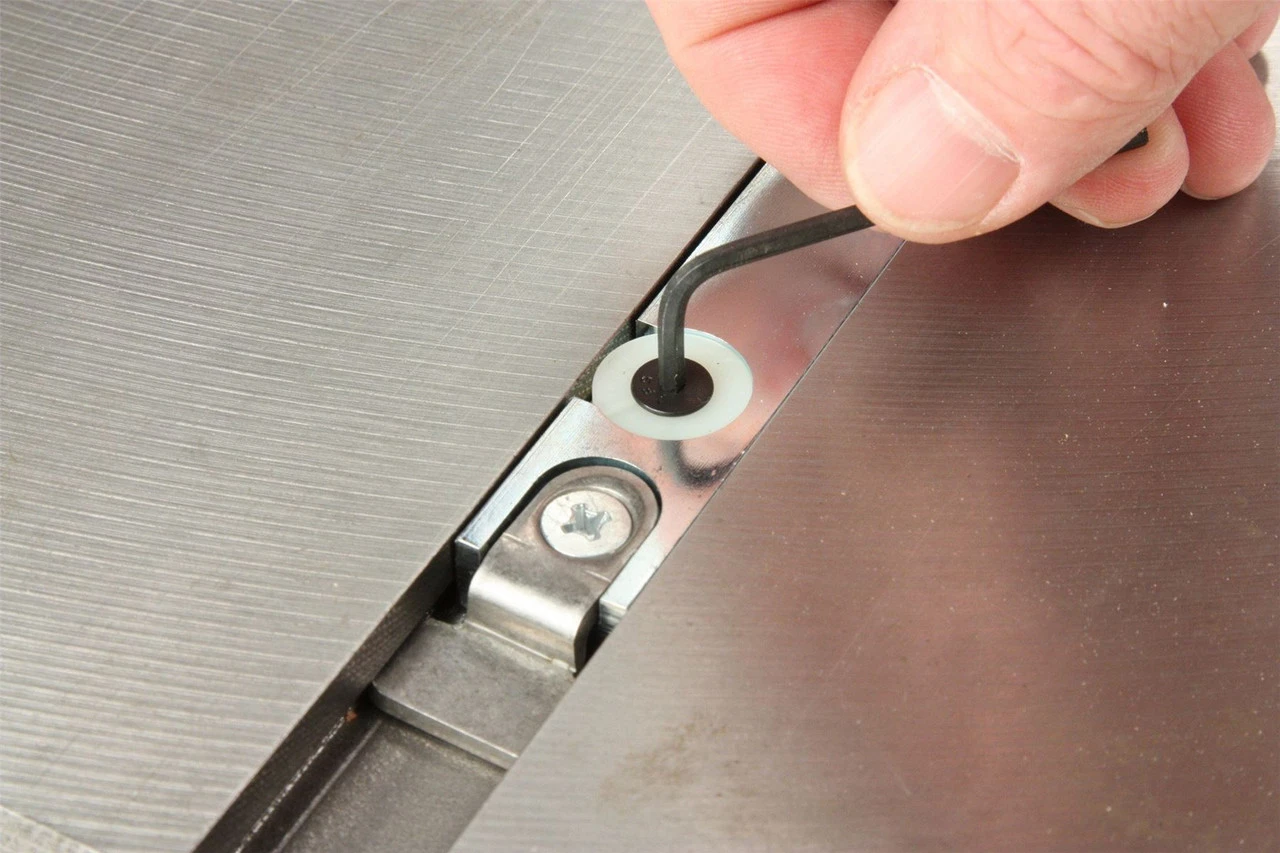

The steel miter bar is equipped with four patented GlideLOCK adjustment points for a perfect, low-friction fit in a wide variety of machines using a standard miter slot. As with all INCRA crosscutting tools, a removable T-slot retaining clip is included, and the adjusters are accessible from the top for quicker set up than traditional miter bars with side-mounted adjusters.

Features

• 120 Positive Angle Stops
• GlideLOCK Miter Bar with 4 Expansion Points
• 1° Increments
• Special Stops at Plus or Minus 22.5°
• Plus or Minus 60° Range

Compatibility

The V120’s adjustable miter bar will fit square-sided miter slots 3/4″ wide, 3/8″ deep, and either with or without a 15/16″ wide T-slot at the bottom. The miter bar’s adjustment range accommodates slot widths between 0.740″ to 0.760″.

INCRA Mitre Gauges are suitable for mitre tracks or channels with a dimension of 3/4in (wide) x 3/8in (deep) – (19mm x 10mm).

Includes

• 1 x Mitre Bar
• 1 x Protractor and SquarePERFECT bracket assembly
• 1 x Handle, Hex Key and Hardware
• 1 x Manual

Click here for V120 Product Manual
