INCRA Miter Gauge 5000 (Metric)

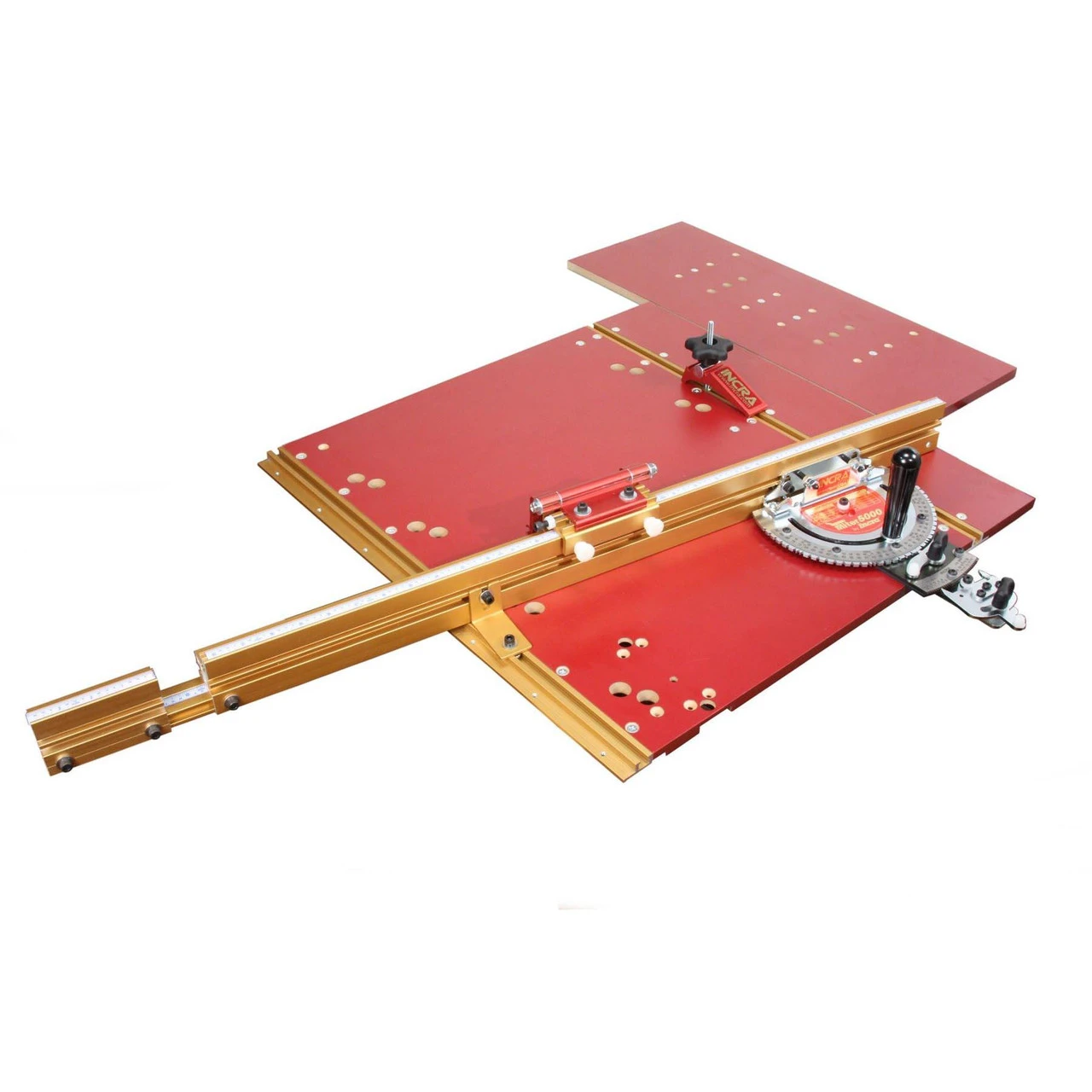

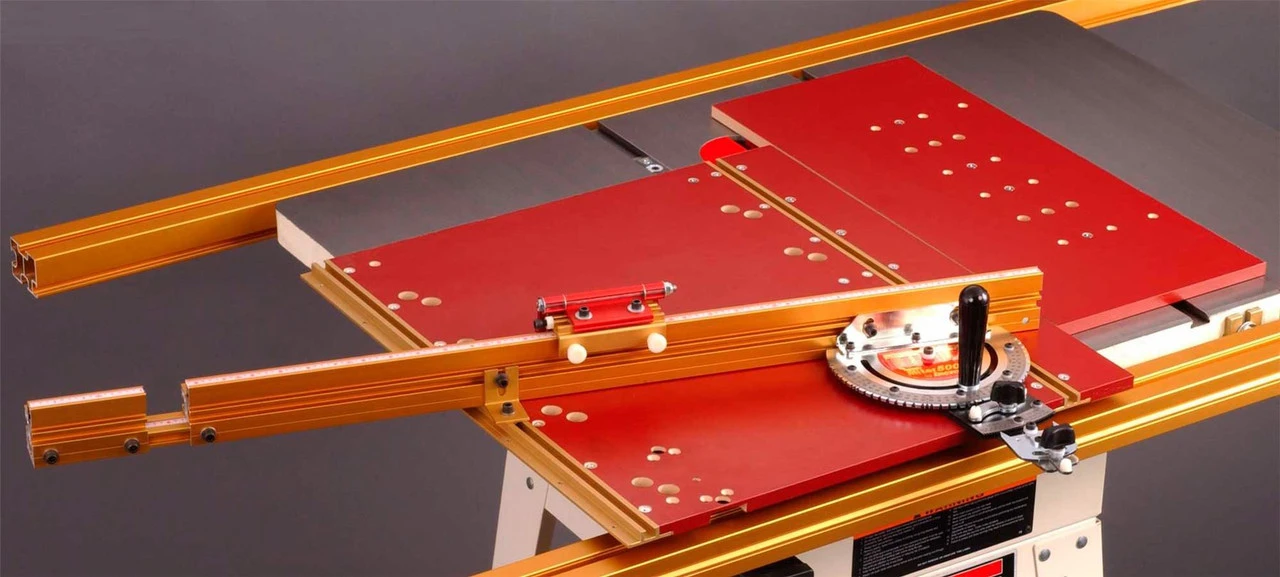

INCRA Miter Gauge 5000 blends the incremental angle control features of the Miter 3000SE with a very special 3-Panel Sled for the ultimate miter cutting workstation for the table saw.

A Renewable Right Panel provides zero-clearance tear-out control and cut-off support on Both sides of the blade. Two aluminium T-tracks are embedded in
the MDF panel top to secure an included work piece hold-down clamp and to provide absolute rigid support for the 36″ to 64″ telescoping IncraLOCK Cut-off Fence. Will crosscut a 25″ wide board with full control on a standard 10″ table saw. The Miter5000 by INCRA delivers perfect, repeatable accuracy.

Included with every Miter 5000 is this simple and incredibly useful Hold Down Clamp which locks your workpiece onto the sled for maximum accuracy and the cleanest cuts possible. It only takes seconds to use and provides the rigidity needed for world class results.

Features

• 364 Indexed Stops in 0.5° Increments
• Extender Fence Telescopes from 36″ to 64″
• GlideLOCK Miter Bar Adjusts to Fit Any Standard Table Saw

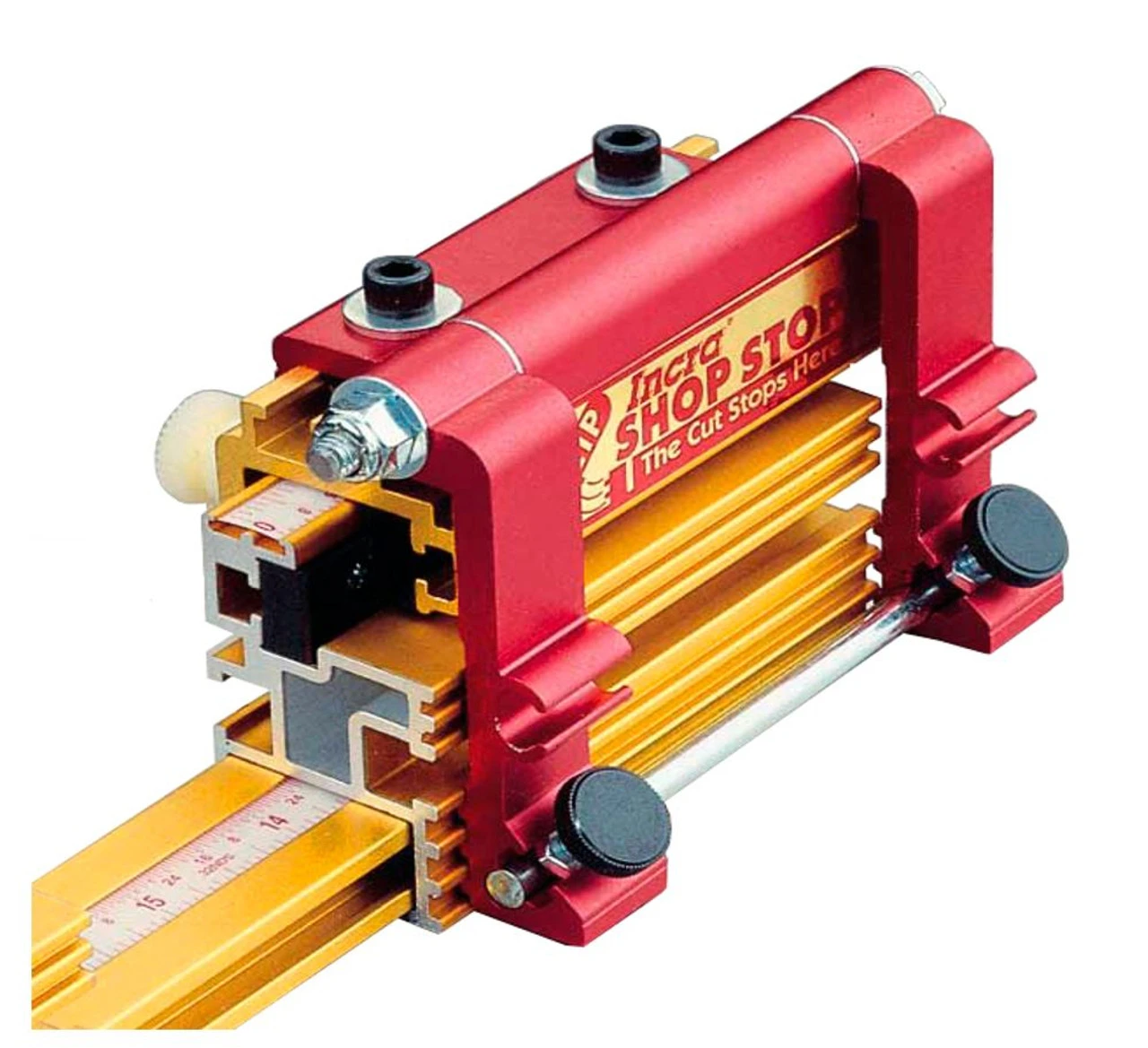

• INCRA Flip Shop Stop Positioner
• Indexing Every 0.5° Plus Continuous Adjustment Between 0.5° Steps
• Right- and Left-tilt saw compatible
• Fence lock down clamp for rock solid support
• Miter Slider included for static sled panel positioning

GlideLOCK Miter Bar

The expansion disks adjust both sides of the bar for ZERO side play, anti-friction travel on all table saws with standard 3/4″ x 3/8″ or near-standard miter gauge channels, including Delta, Craftsman, imports, etc. The miter bar’s adjustment range accommodates actual slot widths between 0.740″ and 0.760″.

Special Edition Telescoping INCRA-LOCK Fence

This Special Edition Miter Fence telescopes from 36″ to a full 64″ length. Includes the Dual Flip Shop Stop and INCRA’s patented Automatic Positioning Control.

AngleLOCK Indexing

Precision angle indexing teeth are laser cut in solid steel to lock in 364 positive angle stops in 1/2°, 1° or 5° increments over a full 180° range. it’s also continuously adjustable between 1/2° steps.

Table size

For adequate support laterally, the Miter 5000 requires a minimum of 254mm (10″) from the side of the outer edge of the miter slot to either the left or right edges of the saw (sled can be installed on either side of the blade).

METRIC scale and indexing.
