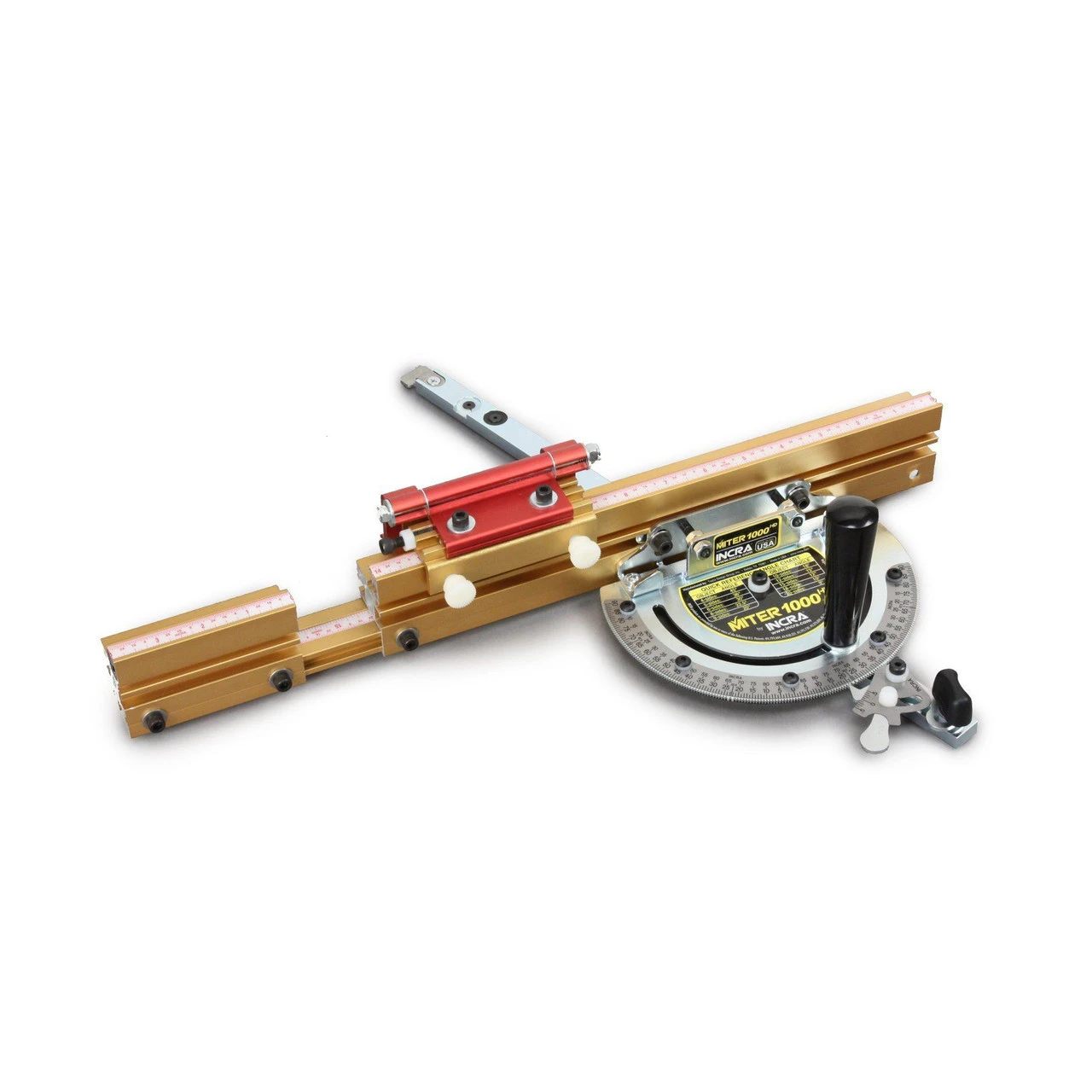

INCRA Miter Gauge 1000HD (Metric)

The protractor plate’s exclusive AngleLOCK Indexing System has a whopping 180 can’t-miss angle stops in 1-degree increments with special stops located at 22.5 degrees.

The HD stands for High Definition and is the most refined model yet in the Miter 1000 series.

Combine that high-resolution protractor with the industry’s smoothest adjustable miter bar, a telescoping IncraLOCK Cut-off Fence and Flip Shop Stop, and a steel vernier scale that reads to 1/10°, and you’ve got a winner that will improve the quality of any project.

Are you cutting parts for segmented turning? The Miter 1000HD will allow you to precisely set and quickly duplicate any angle you might need, whether it’s 18° for cutting 10 sides, 25.7° for 7-sided objects, or anything else imaginable.

Features

• 180 Indexed Angle Stops Every 1° Over 180° Range
• GlideLOCK Miter Bar Adjusts to Fit Any Standard Table Saw
• 1/10° Vernier Cursor
• New Extender Fence Telescopes From 18″ to 31″
• INCRA Flip Shop Stop Positioner
• Heavy Duty Steel Protractor

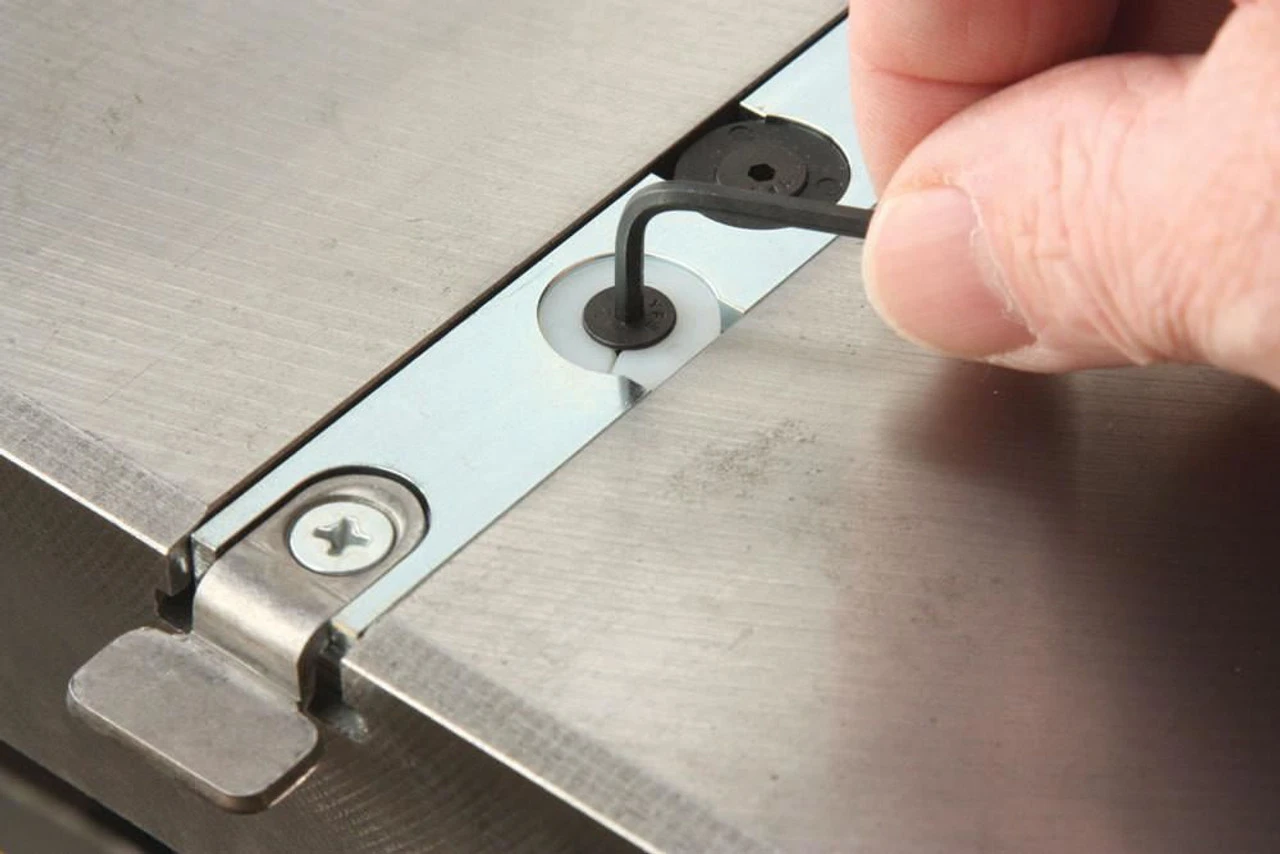

GlideLOCK Miter Bar
Six expansion disks adjust both sides of the bar for ZERO side play, low-friction travel on all table saws with standard miter gauge channels, including Delta,
Craftsman, imports, etc. An excellent fit in the channel directly transfers the Miter 1000HD’s incredible accuracy directly to your project.

The Miter 1000’s adjustable miter bar will fit square-sided miter slots measuring 3/4″ wide, 3/8″ deep, and with or without a 15/16″ T-slot at the bottom. The miter bar’s adjustment range accommodates actual slot widths between 0.740″ and 0.765″.

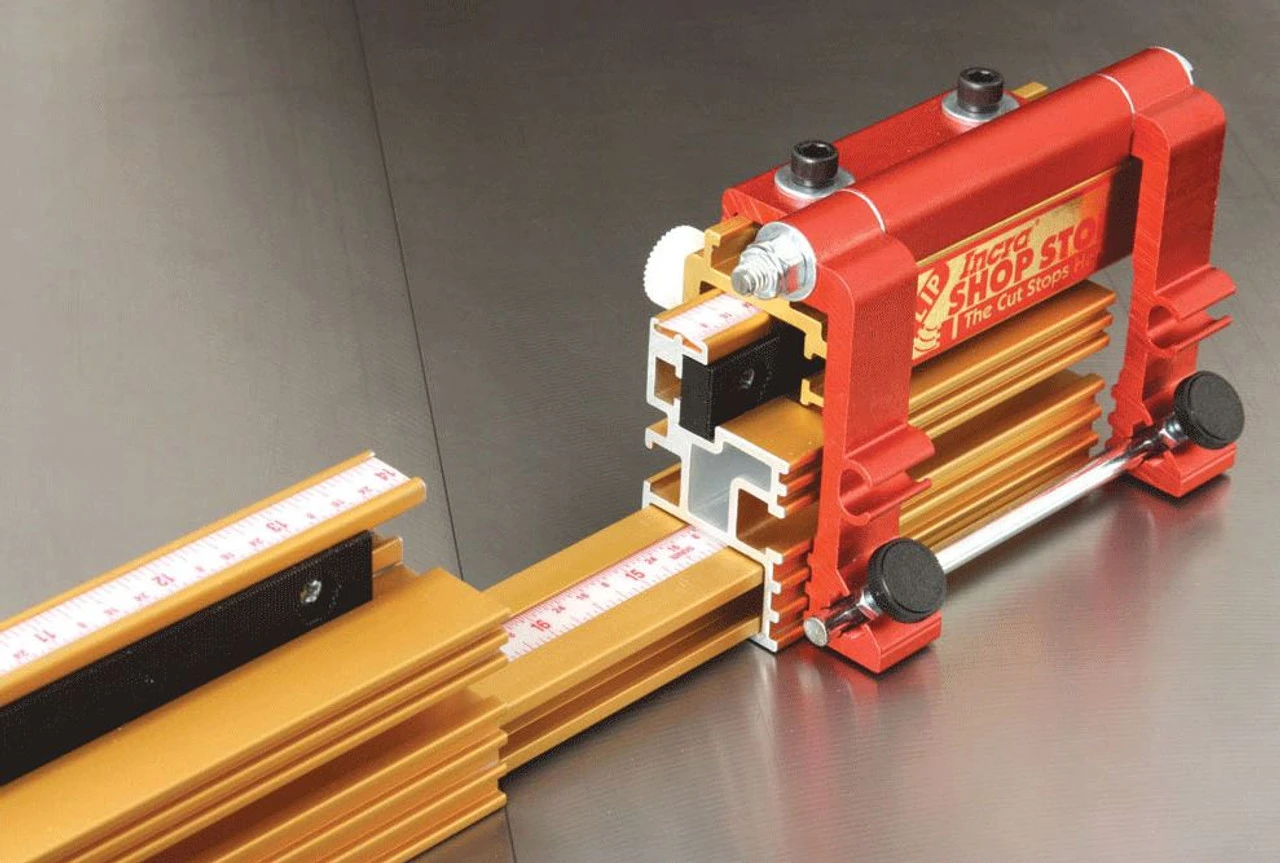

Telescoping IncraLOCK Fence

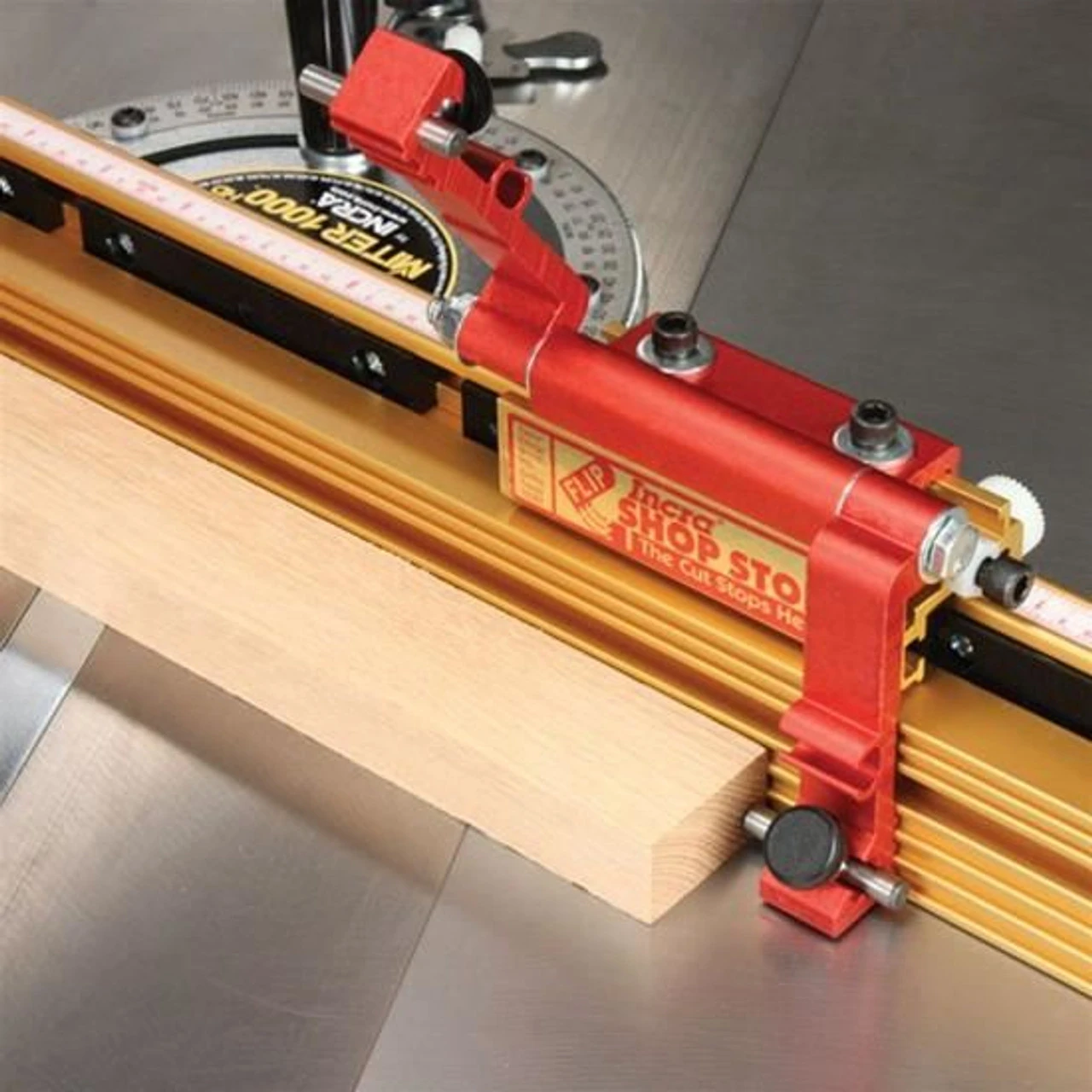

This Miter Fence telescopes from 18″ to a full 31″ length and features a front T-slot for adding a wooden zero-clearance sub fence. The Miter 1000HD’s Flip Shop Stop is equipped with INCRA’s patented incremental positioning racks for incredible cut-length accuracy and 100% day-to-day repeatability.

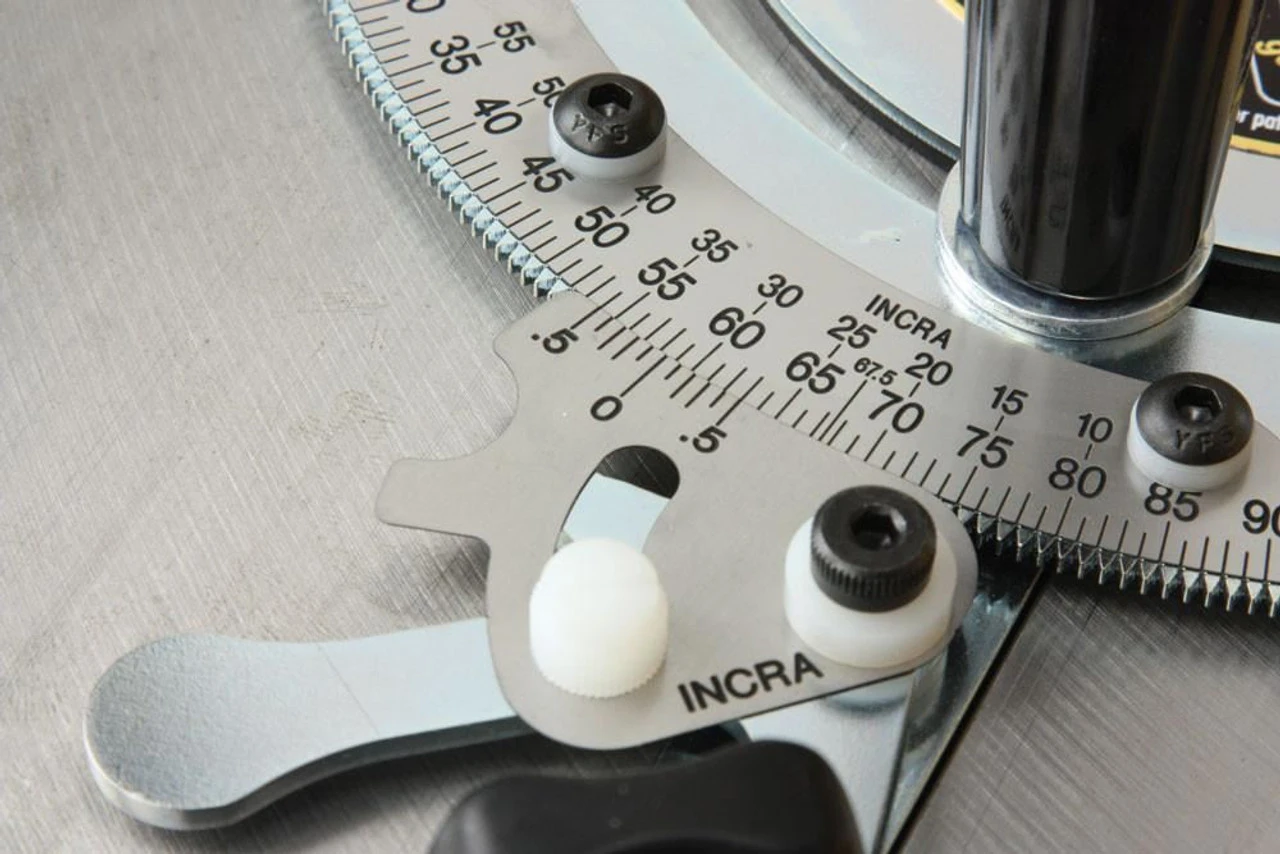

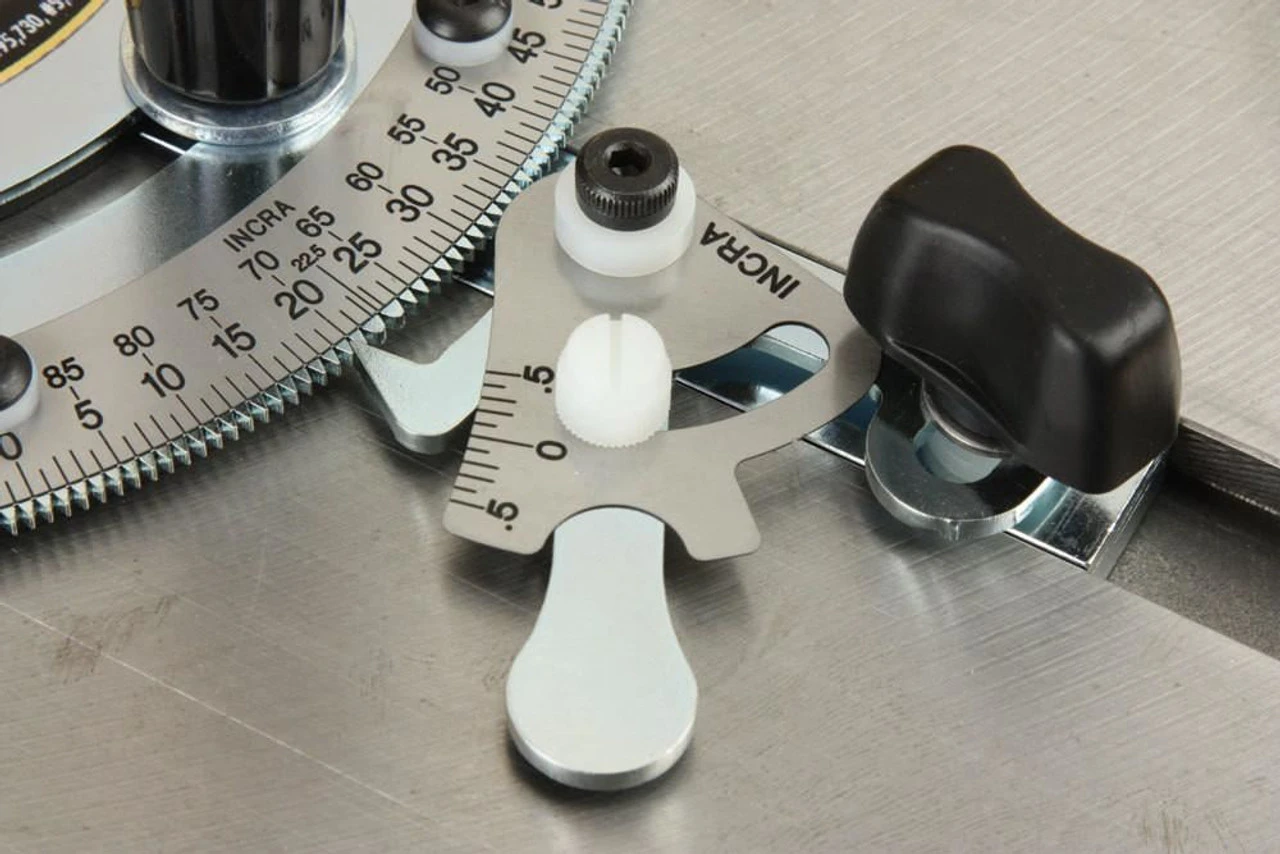

1/10th° Vernier Cursor
Precision angle indexing teeth are laser cut in solid steel to lock in positive angle stops every 1° over a 180° range, with special stops at 22-1/2°. A stainless steel vernier cursor delivers an incredible 1/10th° resolution between fixed steps.

Metric indexing racks and tapes are available for conversion to metric for customers who already have an older imperial product and wish to upgrade.

Includes

• 1 x Mitre Bar
• 1 x Protractor and SquarePERFECT bracket assembly
• 1 x Flip Fence with extension
• 1 x Flip Shop Stop
• 1 x Handle, Hex Key and Hardware
• 1 x Manual

Product Manual

Click here to download the product manual for INCRA Miter Gauge 1000HD
