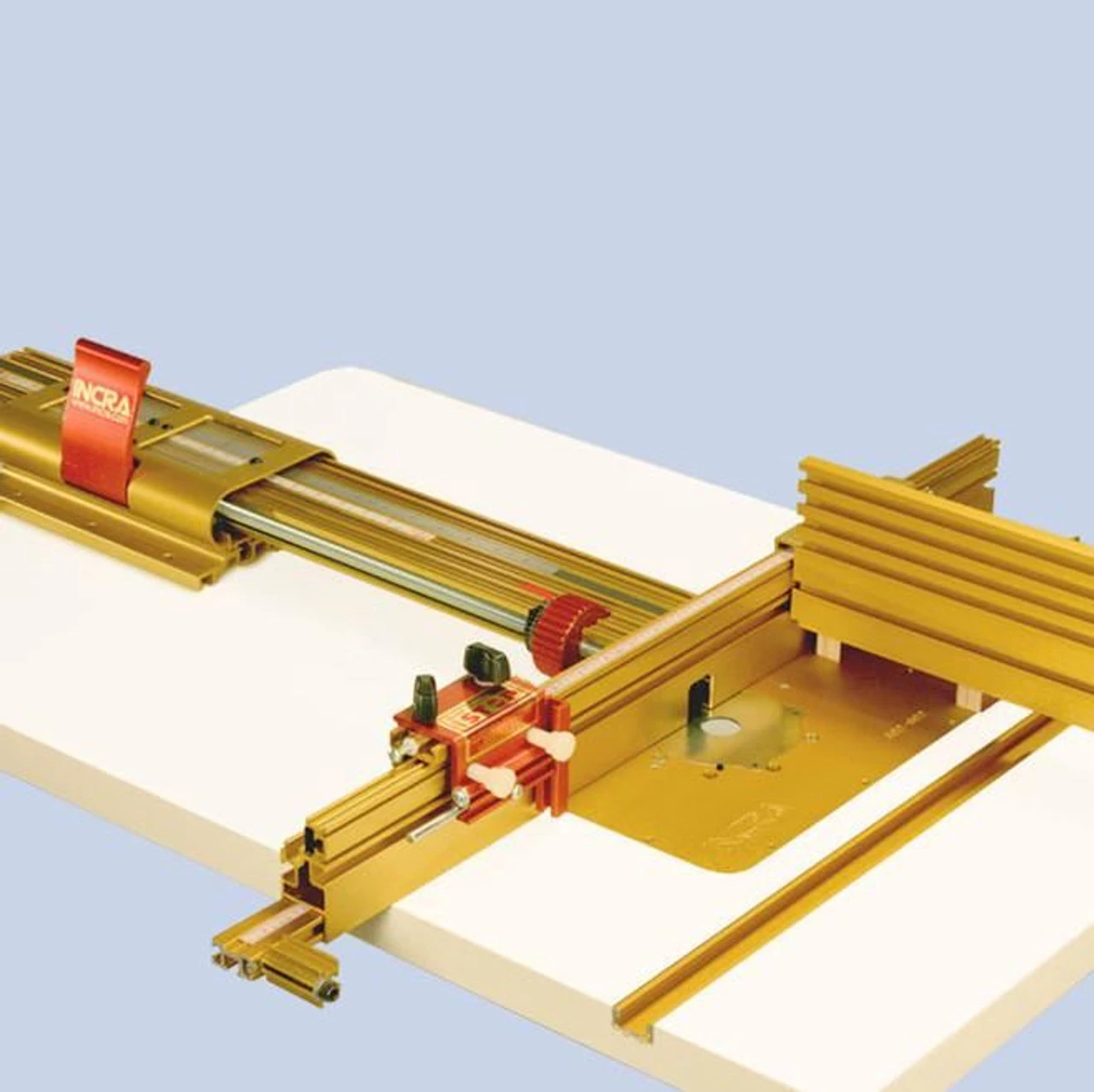

INCRA LS25 Positioner Standard System 635mm (Metric)

This Precision Fence Positioner system can take you from basics like flawless rabbets, friction-fit dadoes, and repetitive slotting jobs to literally billions of variations of box joints and dovetail joints ranging from traditional to absolutely stunning.

Includes

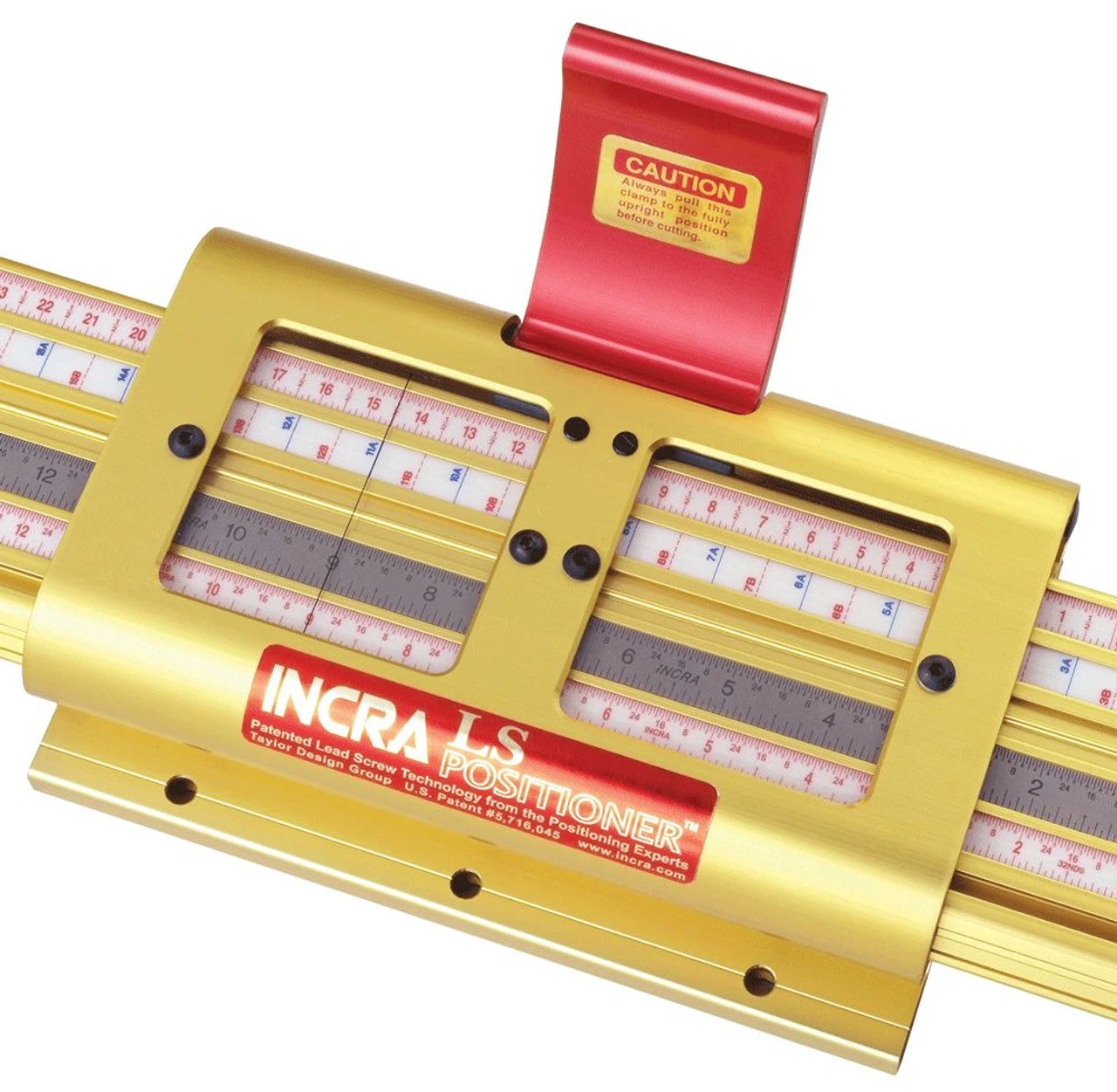

• INCRA LS25 Positioner
• Pro-II Joinery Fence
• INCRA Shop Stop
• INCRA Jumbo Right Angle Fixture
• 13″ Telescoping Stop Extender Bar with Shop Stop
• Master Reference Guide and  Template Library
• Link to Instructional LS Positioner Video
• Instruction Manual

Lead Screw (LS) Technology

The LS stands for Lead Screw. INCRA’s patented Lead Screw technology makes this unit the leader in precision positioners for woodworking.

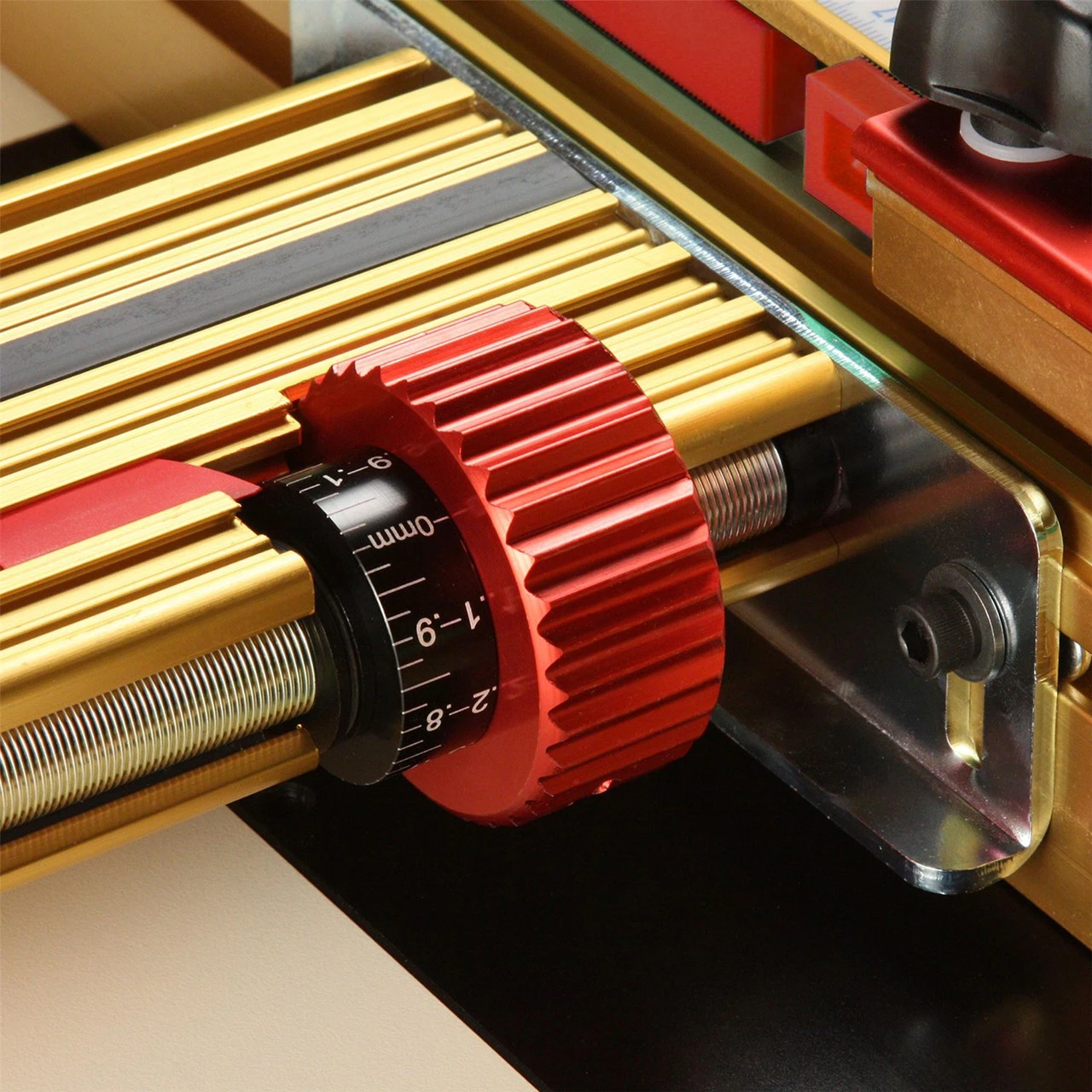

The LS positioner’s accuracy is +/- 0.05mm – the lead screw’s 1mm increments across its entire range, so it’s essentially perfect even without the built-in micro adjust. The large micro-adjust knob turns the lead screw against the mating threads, allowing the fence to be shifted in 1/20mm steps to tweak the width of a groove or zero the fence against a router bit.

The fence used for the Standard Systems is the Pro-II 28″ fence, which features a surface that’s machined flat in a milling machine and a T-slot for adding fixtures or adding the INCRA Wonder Fence in the future. The Pro-II fence directly accepts the Shop Stop or INCRA Stop, and there’s also a telescoping extender bar for stopping grooves being cut into longer boards.

INCRA Master Reference Guide & Template Library.

Provides straightforward instructions and 51 joinery templates (25 templates in the metric version) to slide into the positioner to provide a visual reference for each joint pattern. Those templates can produce a mind-boggling variety of joints – 11 box joint patterns and 29 dovetail patterns are included (or 9 metric box joints and 16 metric dovetails), and each one of the dovetail patterns can be cut half blind, through, sliding, or corner post.

INCRA Jumbo Right Angle Fixture & INCRA Shop Stop

INCRA’s largest Right Angle Fixture is included to keep workpieces square to the fence and square to the table for joinery operations. Instead of the basic stop block of typical router fences, the included INCRA Shop Stop is based on patented incremental positioning racks to give you unparalleled accuracy and repeatability when limiting a board’s travel across the router bit, or setting the endpoints of stopped grooves for drawer and box bottoms.

INCRA LS Instructional Video

The LS systems are topped off with a link to a 1hr, 22min instructional video – this video is loaded with information – how to take advantage of the optional Wonder Fence’s advanced features, cut perfect-fitting rabbets and dadoes, and it has full-length instructions for box joints and the four most common styles of dovetail joints.
