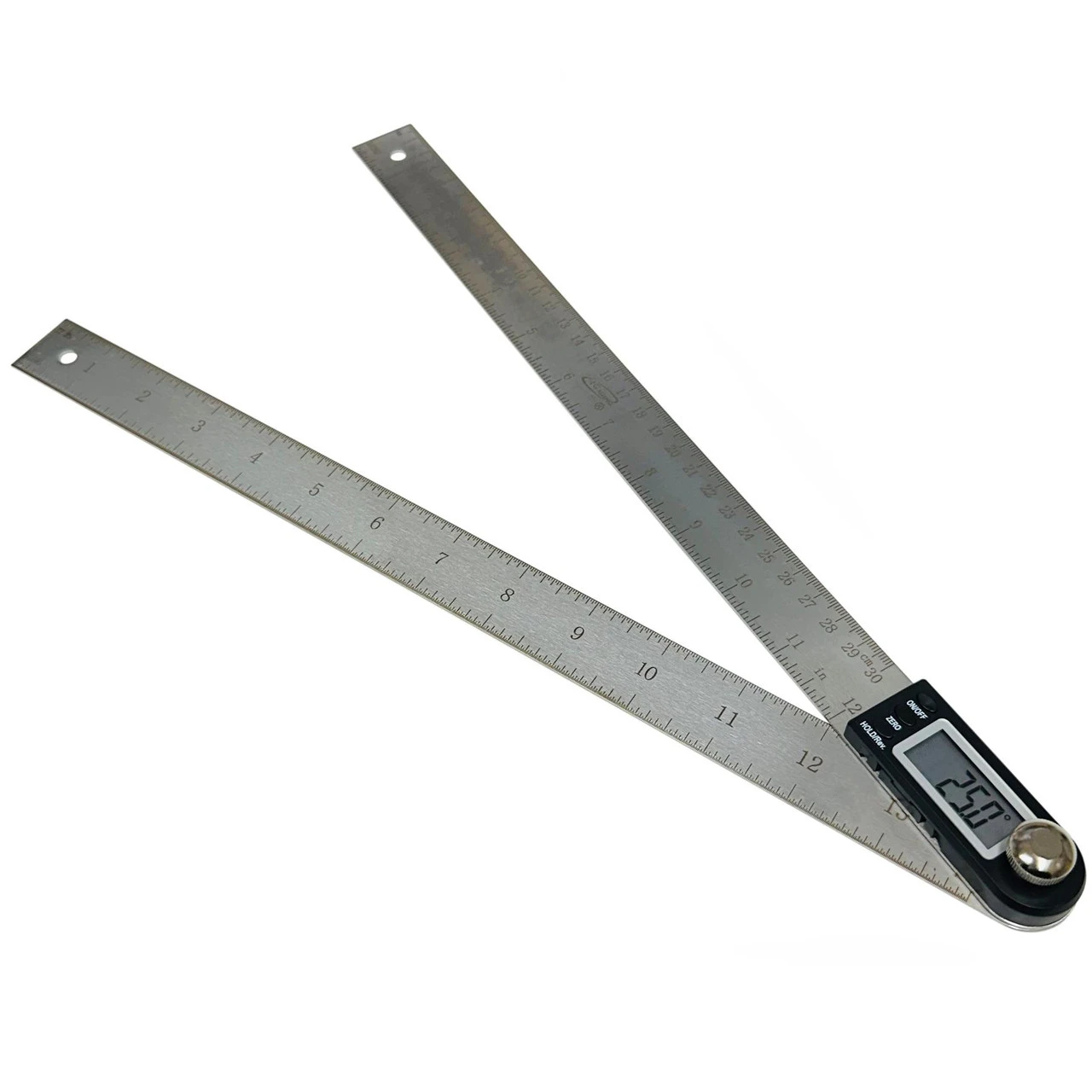

IGaging Digital Protractor And Rule 355mm (14″)

iGaging Digital Protractor and Rule with large LCD display, measures a full 360 degrees to a resolution of 0.05 degrees with a 355mm/14″ rule.

The blades have a 300mm/12″ rule on the front with 355mm/14″ on the back blade. The 27mm wide 1.25mm thick stainless blades with clear metric and imperial graduations turn this protractor into a highly accurate, easy-to-use digital sliding bevel or machine setter.

It shows the entire 360° range that is accurate to +/-0.3° and has arms that lock firmly together using a knurled stainless nut. A great tool for setting angles when laying out, or for getting an accurate angle on an existing workpiece ready to transfer. The reverse button flips the reading direction of the display on the large, clear LCD display.

Features

• Open length of 655mm incorporating both metric and imperial rules
• Large easy to read LCD with zero, hold and reverse functions
• 360° range that is accurate to +/-0.3° with strong lock
• Handy hanging hole
• Supplied with standard 3V CR2032 battery
